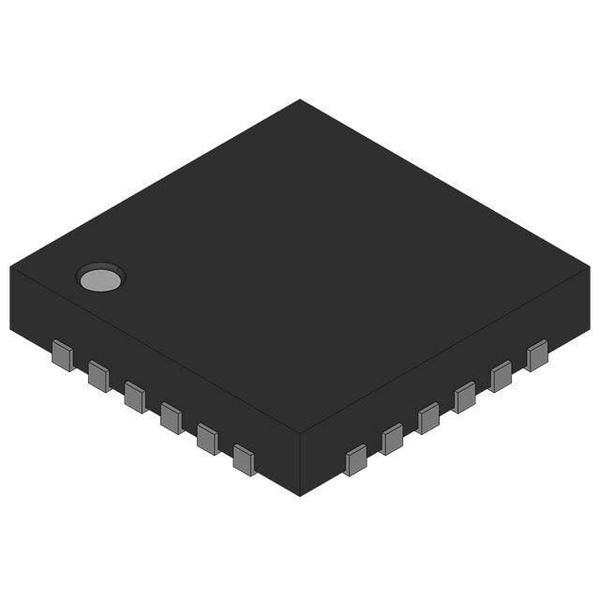

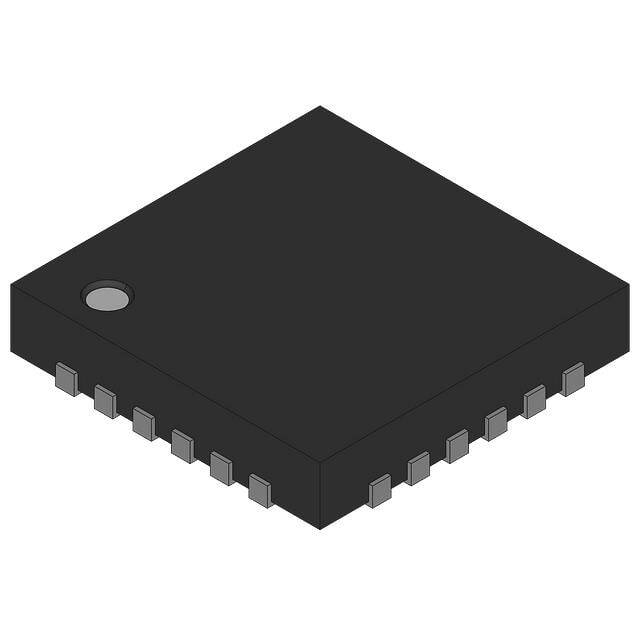

LMH7322SQ

SKU: 122514

Manufacturer: Texas Instruments

Comparator Dual ±6V/12V 24-Pin WQFN EP T/R

1630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Manufacturer Type	High Speed Comparator
Number of Channels per Chip	2
Rail to Rail	No
Process Technology	Bipolar
Typical CMRR (dB)	80
Typical PSRR (dB)	80
Maximum Propagation Delay Time (ns)	0.783(Typ)
Output Type	Complementary
Operating Supply Voltage-Max (V)	±6
Maximum Input Offset Voltage (mV)	8@5V
Minimum Single Supply Voltage (V)	2.7
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±1.35
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±6
Typical Voltage Gain (dB)	53
Typical Voltage Gain Range (dB)	40 to 70
Maximum Input Bias Current (uA)	5(Min)@5V
Maximum Supply Current (mA)	20@5V
Typical Output Current (mA)	25(Max)
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Standard Package Method	QFN
Original Package	WQFN EP
Pin Count	24
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4.15(Max)
Package Width	4.15(Max)
PCB changed	24
