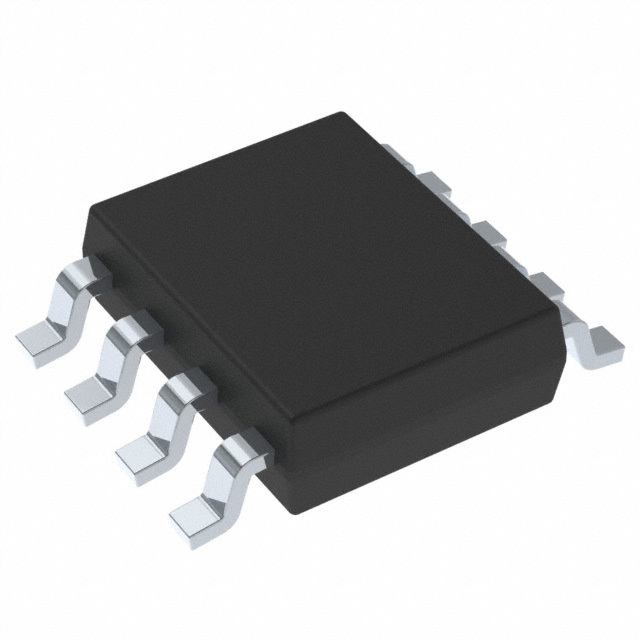

LMH6672MRX/NOPB

SKU: 12396

Manufacturer: Texas Instruments

Op Amp Dual High Speed Amplifier ±6.5V/12V 8-Pin HSOIC EP T/R

340 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Speed Amplifier
Manufacturer Type	High Speed Amplifier
Number of Channels per Chip	2
Maximum Input Offset Voltage (mV)	5.5@±6V@-40C to 125C
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	12
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±5
Maximum Dual Supply Voltage (V)	±6.5
Maximum Input Offset Current (uA)	2.1@±6V@-40C to 125C
Typical Input Bias Current (uA)	8@±6V@-40C to 125C
Maximum Input Bias Current (uA)	16@±6V@-40C to 125C
Maximum Supply Current (mA)	16@±6V
Typical Output Current (mA)	525@±6V
Power Supply Type	Dual
Typical Slew Rate (V/us)	135@±6V
Typical Input Noise Voltage Density (nV/rtHz)	3.1@±6V
Typical Voltage Gain (dB)	73.98
Typical Noninverting Input Current Noise Density (pA/rtHz)	1.8@±6V
Minimum PSRR (dB)	72
Minimum CMRR (dB)	76.48
Minimum CMRR Range (dB)	75 to 80
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	HSOIC EP
Terminal Form	Surface Mount
Package Height	1.55(Max)
Package Length	5(Max)
Package Width	4(Max)
PCB changed	8
