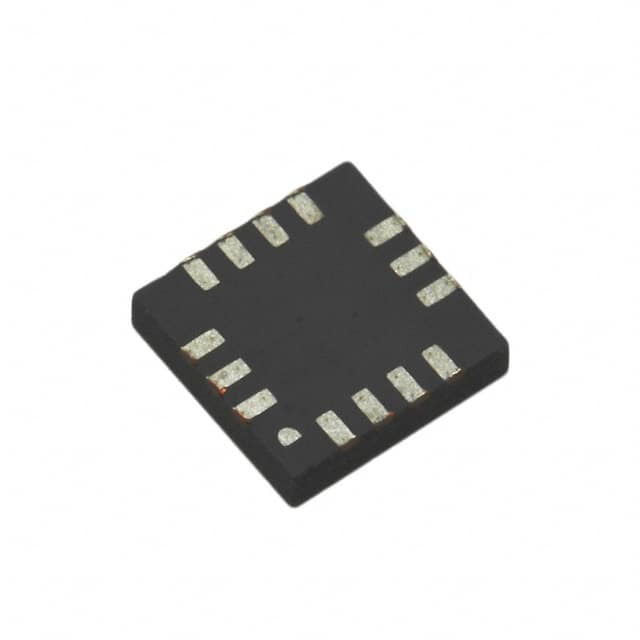

LMH6554LEE/NOPB

SKU: 146880

Manufacturer: Texas Instruments

SP Amp DIFF AMP Single ±2.625V/5.25V Automotive 14-Pin UQFN T/R

20 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Differential Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	0
Minimum CMRR Range (dB)	75 to 85
Minimum CMRR (dB)	83(Typ)
Minimum PSRR (dB)	74
Output Type	Differential
Typical Output Current (mA)	150@±2.5V
Maximum Input Offset Voltage (mV)	16(Min)@±2.5V
Operating Supply Voltage-Max (V)	±2.625
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	4.7
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Minimum Dual Supply Voltage (V)	±2.35
Maximum Dual Supply Voltage (V)	±2.625
Maximum Input Bias Current (uA)	10@±2.5V
Maximum Input Resistance (MOhm)	0.18(Typ)@±2.5V
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	14
Standard Package Method	QFN
Original Package	UQFN
Terminal Form	Surface Mount
Package Height	0.6(Max)
Package Length	2.5
Package Width	2.5
PCB changed	14
