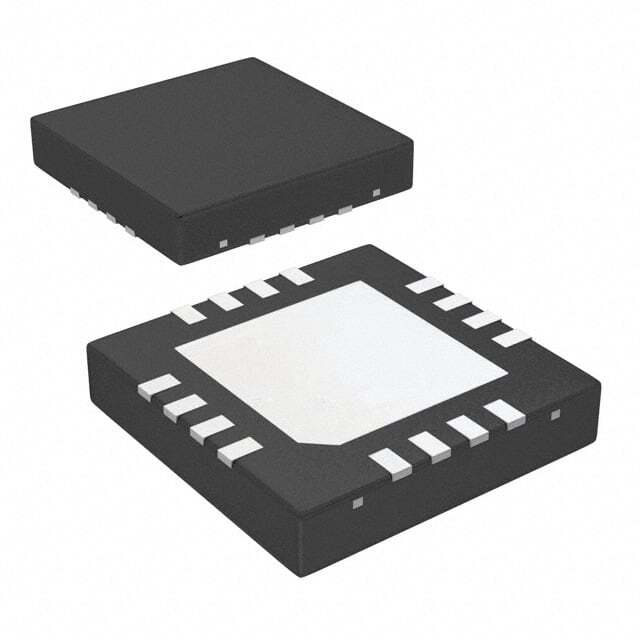

LMH6514SQE/NOPB

SKU: 51951

Manufacturer: Texas Instruments

SP Amp Variable Gain Amp Single 5.25V 16-Pin WQFN EP T/R

1500 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Digital Variable Gain Amplifier
Number of Elements per pcs	1
Number of Channels per Chip	1
Maximum Voltage Gain Range (dB)	<35
Maximum Voltage Gain (dB)	30.3
Minimum CMRR Range (dB)	75 to 85
Minimum CMRR (dB)	81(Typ)
Minimum PSRR (dB)	63
Output Type	Differential
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Voltage Range (V)	5 to 7
Minimum Single Supply Voltage (V)	4
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	5.25
Maximum Input Resistance (MOhm)	0.00112@5V
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Power Supply Type	Single
Pin Count	16
Standard Package Method	QFN
Original Package	WQFN EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	16
