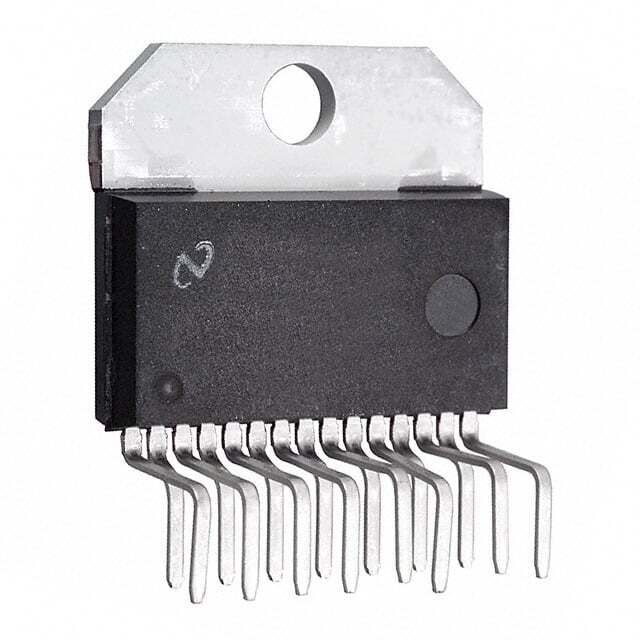

LMD18245T

SKU: 62032

Manufacturer: Texas Instruments

Full Bridge Motor Driver 15-Pin(15+Tab) TO-220 Tube

390 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Motor Driver
Motor Type	Stepper Motor
Output Configuration	Full Bridge
Operating Supply Voltage-Min (V)	12
Operating Supply Voltage (V)	12 to 55
Operating Supply Voltage-Max (V)	55
Maximum Power Dissipation (mW)	3500
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220
Pin Count	15
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	10.69
Package Length	20.02
Package Width	4.5
PCB changed	15
