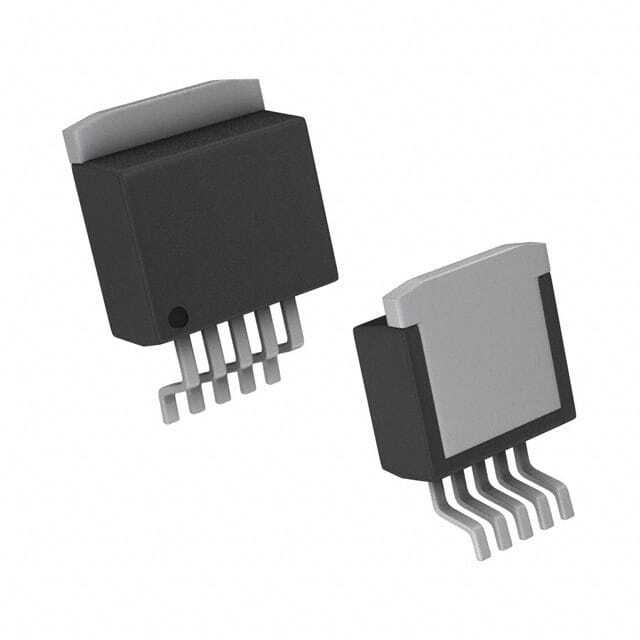

LM9076SX-5.0/NOPB

SKU: 94102

Manufacturer: Texas Instruments

LDO Regulator Pos 5V 0.15A Automotive 6-Pin(5+Tab) DDPAK T/R

990 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant with Exemption
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±3
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.15
Minimum Input Voltage (V)	5.35
Maximum Input Voltage (V)	40
Maximum Dropout Voltage @ Current (V)	0.05@10mA
Line Regulation	35mV
Load Regulation	60mV
Junction to Ambient	75°C/W
Junction to Case	2.9°C/W
Special Features	Thermal Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	DDPAK
Pin Count	6
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	5
Tab	Tab
