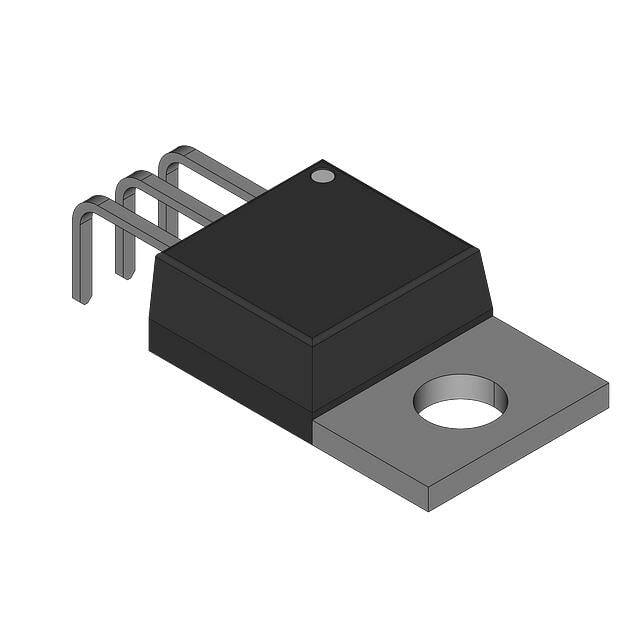

LM7915CT

SKU: 97250

Manufacturer: Texas Instruments

Standard Regulator Neg -15V 1.5A 3-Pin(3+Tab) TO-220 Tube

870 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Negative
Accuracy (%)	±4
Output Type	Fixed
Output Voltage (V)	-15
Maximum Output Current (A)	1.5
Maximum Input Voltage (V)	-23
Line Regulation	100mV
Load Regulation	200mV
Maximum Quiescent Current (mA)	3
Junction to Ambient	60°C/W
Junction to Case	5°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	8.89(Max)
Package Length	10.16
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
