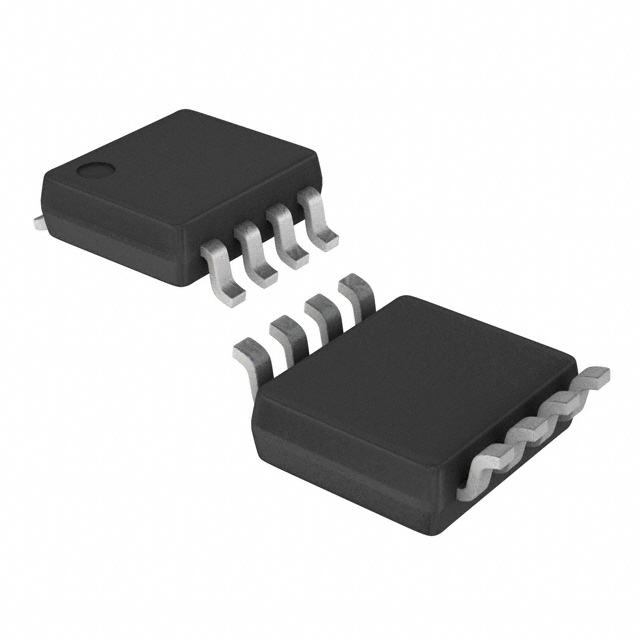

LM7705MM/NOPB

SKU: 101198

Manufacturer: Texas Instruments

Charge Pump INV -0.233V -35mA 8-Pin VSSOP T/R

14450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Function	Inverting
Output Type	Fixed
Output Voltage (V)	-0.233
Operating Supply Voltage-Min (V)	3
Operating Supply Voltage-Max (V)	5.25
Maximum Supply Current (mA)	0.135
Output Current (mA)	-35(Min)
Switching Frequency (kHz)	92(Typ)
Efficiency (%)	98(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
