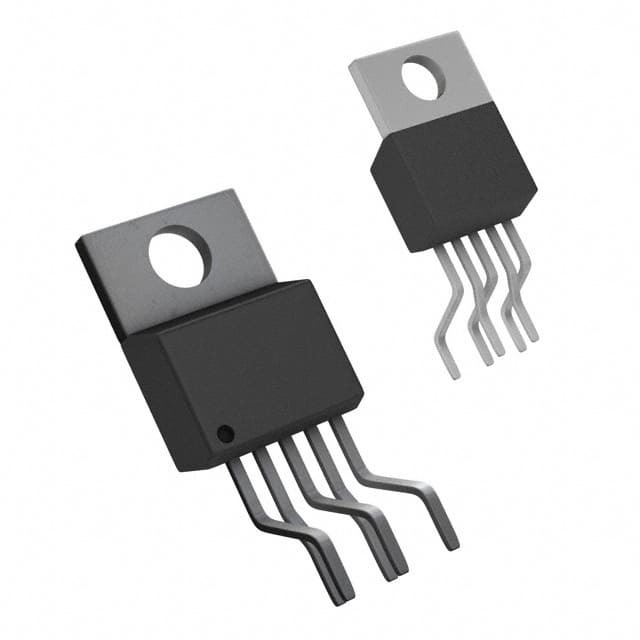

LM675T/NOPB

SKU: 115391

Manufacturer: Texas Instruments

Op Amp Single High Output Power Amplifier ±30V/60V 5-Pin(5+Tab) TO-220 Tube

700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	High Output Power Amplifier
Manufacturer Type	High Output Power Amplifier
Number of Channels per Chip	1
Process Technology	Bipolar
Maximum Input Offset Voltage (mV)	10@±25V
Minimum Single Supply Voltage (V)	16
Typical Single Supply Voltage (V)	18
Maximum Single Supply Voltage (V)	60
Minimum Dual Supply Voltage (V)	±8
Typical Dual Supply Voltage (V)	±9
Maximum Dual Supply Voltage (V)	±30
Maximum Input Offset Current (uA)	0.5@±25V
Maximum Input Bias Current (uA)	2@±25V
Maximum Quiescent Current (mA)	50@±25V
Power Supply Type	Single
Maximum Power Dissipation (mW)	30000
Typical Slew Rate (V/us)	8@±25V
Typical Input Noise Voltage Density (nV/rtHz)	16
Typical Voltage Gain (dB)	90
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.22
Minimum PSRR (dB)	70
Minimum CMRR (dB)	70
Minimum CMRR Range (dB)	70 to 71
Typical Gain Bandwidth Product (MHz)	5.5
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Pin Count	5
Standard Package Method	TO-220
Original Package	TO-220
Terminal Form	Through Hole
Package Height	8.64
Package Length	10.16
Package Width	4.57
PCB changed	5
Tab	Tab
