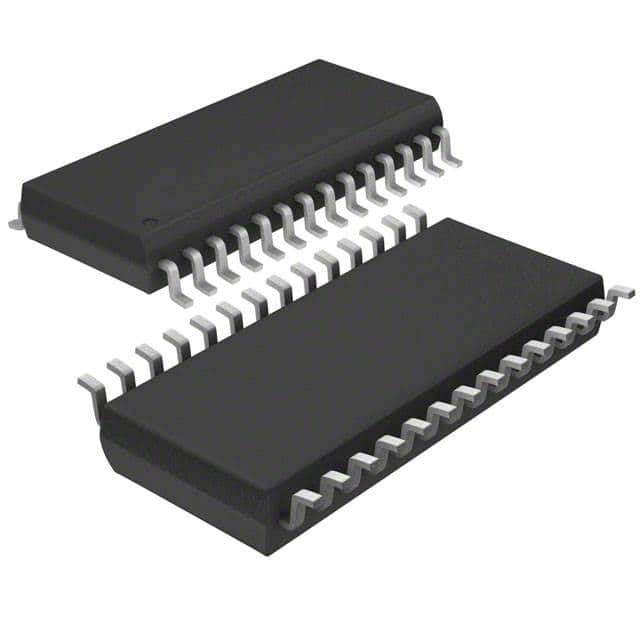

LM5642MTC

SKU: 26500

Manufacturer: Texas Instruments

DC/DC Cntrlr Dual-OUT Step Down 20A/20A 226kHz 28-Pin TSSOP Tube

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Outputs	2
Topology	Step Down
Output Voltage (V)	1.3 to 32.4
Maximum Output Current (A)	20
Maximum Switching Frequency (kHz)	226
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	4.5 to 36
Maximum Supply Current (mA)	1.1(Typ)
Typical Quiescent Current (mA)	1.1
Maximum Power Dissipation (mW)	1100
Minimum Switching Frequency (kHz)	166
Typical Switching Frequency (kHz)	200
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	28
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	9.8(Max)
Package Width	4.5(Max)
PCB changed	28
