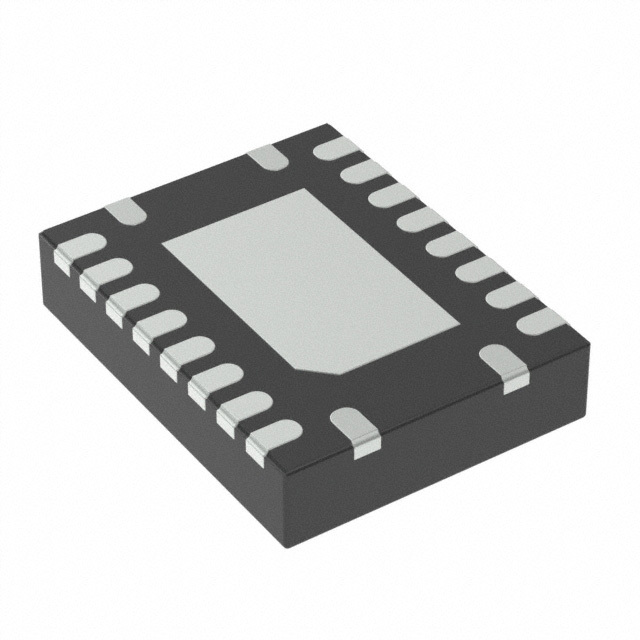

LM5145RGYR

SKU: 51936

Manufacturer: Texas Instruments

Conv DC-DC 6V to 75V Synchronous Step Down Single-Out 0.8V to 60V 30A 20-Pin VQFN EP T/R

440 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	100 to 1000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 60
Maximum Output Current (A)	30
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	75
Maximum Low Level Output Voltage (V)	0.4
Maximum High Level Output Voltage (V)	3(Min)
Operating Supply Voltage (V)	6 to 75
Typical Quiescent Current (uA)	1500
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	VQFN EP
Pin Count	20
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	4.65(Max)
Package Width	3.65(Max)
PCB changed	20
