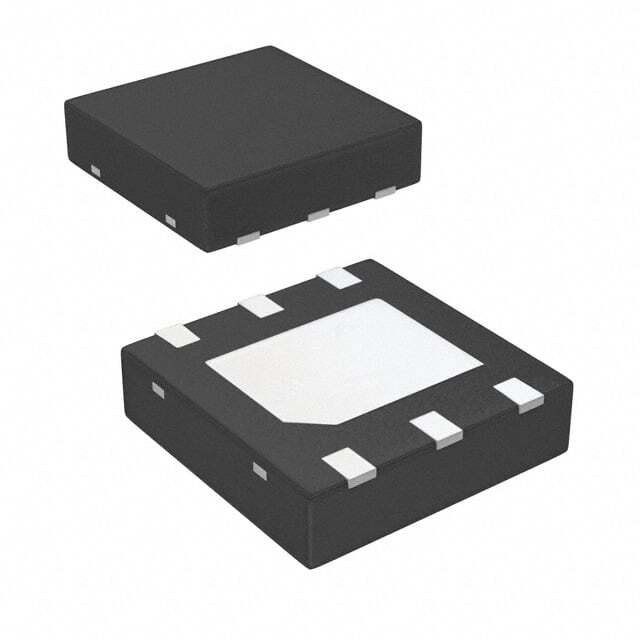

LM5134BSD/NOPB

SKU: 54993

Manufacturer: Texas Instruments

Driver 7.6A 1-OUT Low Side Inv/Non-Inv 6-Pin WSON EP T/R

1460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Driver Type	Low Side
Driver Configuration	Inverting
Number of Drivers	1
Number of Outputs	1
Maximum Rise Time (ns)	24(Typ)
Maximum Fall Time (ns)	7.2(Typ)
Maximum Propagation Delay Time (ns)	26(Typ)
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	4
Operating Supply Voltage-Max (V)	12.6
Typical Input Low Threshold Voltage (V)	0.8(Max)
Typical Input High Threshold Voltage (V)	2.4(Min)
Peak Output Current (A)	7.6(Typ)
Output Resistance (Ohm)	1.14
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Under Voltage Lockout
Packing Method	Tape and Reel
Original Package	WSON EP
Pin Count	6
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	3
Package Width	3
PCB changed	6
