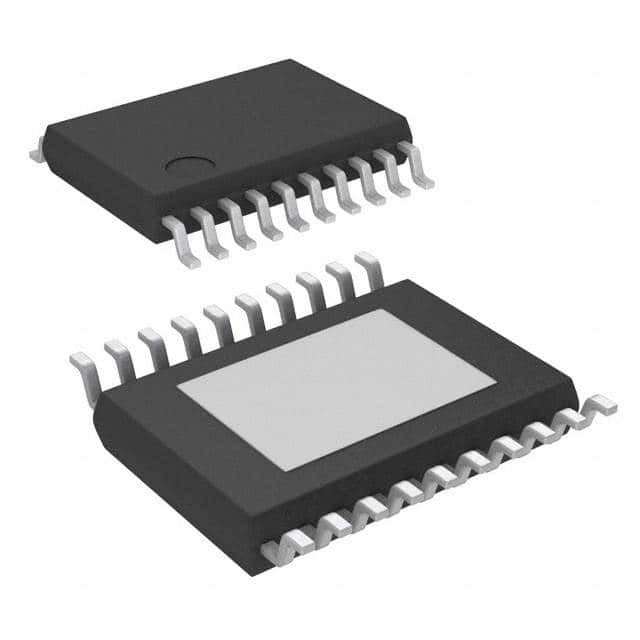

LM5118MHX

SKU: 19459

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down/Step Up 500kHz 20-Pin HTSSOP EP T/R

660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Up
Output Voltage (V)	1.23 to 70
Maximum Switching Frequency (kHz)	500
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	3 to 75
Maximum Supply Current (mA)	4.5(Typ)
Minimum Switching Frequency (kHz)	50
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	HTSSOP EP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
