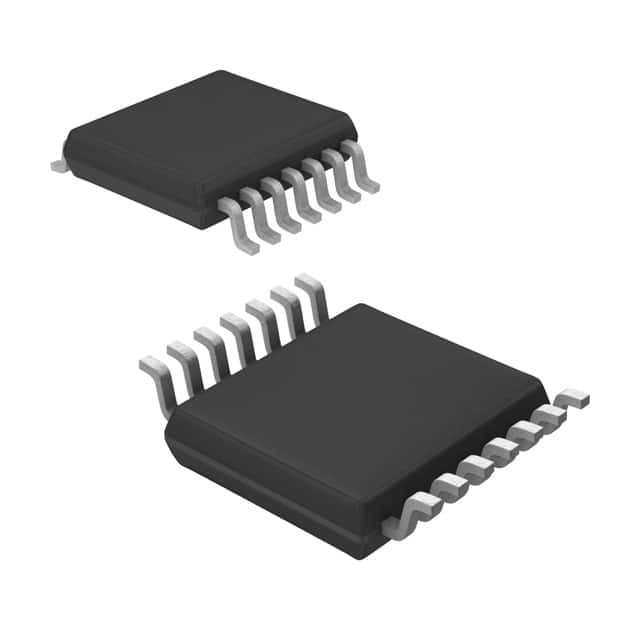

LM5115MTCX Texas Instruments

LM5115MTCX

SKU: 125535

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down 16-Pin TSSOP T/R

Request Free Samples

9180 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	0.75 to 13.5
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	4.5 to 30
Maximum Supply Current (mA)	4
Synchronous Rectifier	Yes
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TSSOP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
