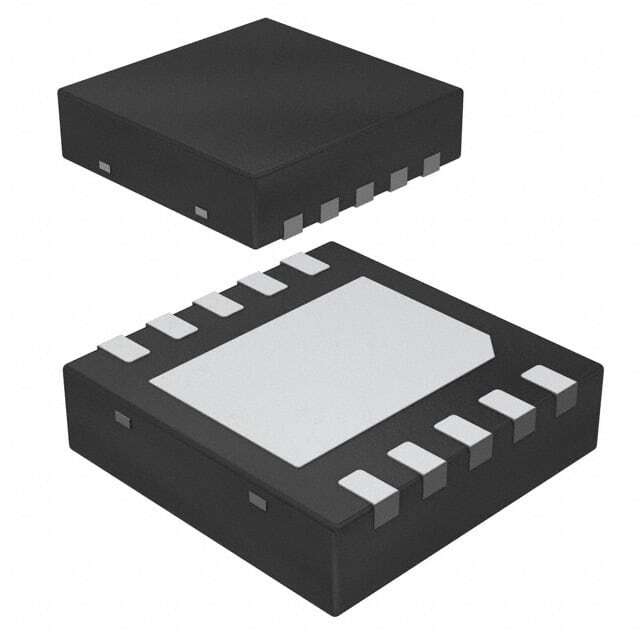

LM5101ASD

SKU: 153991

Manufacturer: Texas Instruments

Driver 3A 2-OUT High and Low Side Half Brdg 10-Pin WSON EP T/R

1630 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Driver Type	High and Low Side
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Independent
Type	MOSFET
Number of Outputs	2
Maximum Rise Time (ns)	430(Typ)
Maximum Fall Time (ns)	260(Typ)
Maximum Propagation Delay Time (ns)	26(Typ)
Input Logic Compatibility	TTL
Operating Supply Voltage-Min (V)	9
Operating Supply Voltage-Max (V)	14
Maximum Supply Current (mA)	2(Typ)
Typical Input Low Threshold Voltage (V)	1.8
Peak Output Current (A)	3(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Low Power Consumption
Maximum Turn-On Delay Time (ns)	4(Typ)
Maximum Turn-Off Delay Time (ns)	4(Typ)
Latch-Up Proof	No
Packing Method	Tape and Reel
Pin Count	10
Standard Package Method	SON
Original Package	WSON EP
Terminal Form	Surface Mount
Package Height	0.75(Max)
Package Length	4.1(Max)
Package Width	4.1(Max)
PCB changed	10
