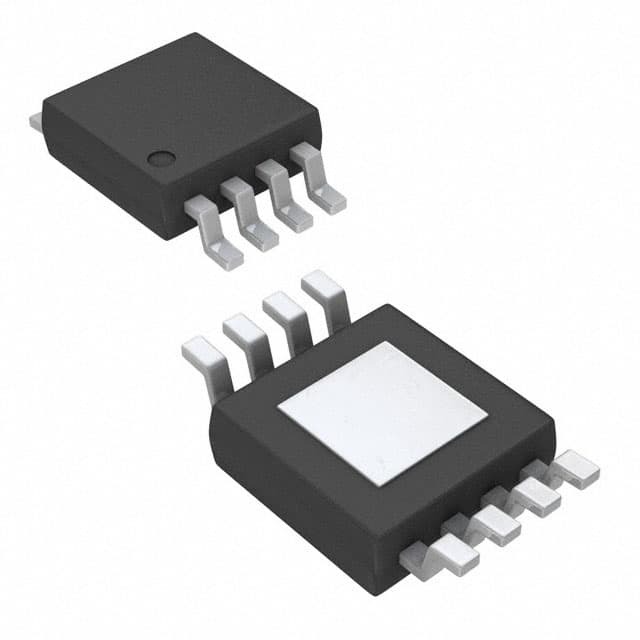

LM5100CMY/NOPB

SKU: 125530

Manufacturer: Texas Instruments

Driver 1A 2-OUT High and Low Side Half Brdg Non-Inv 8-Pin HVSSOP EP T/R

1400 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Obsolete
Automotive	No
PPAP	No
Driver Type	High and Low Side
Driver Configuration	Non-Inverting
Bridge Type	Half Bridge
Number of Drivers	2
High and Low Sides Dependency	Independent
Number of Outputs	2
Maximum Rise Time (ns)	990(Typ)
Maximum Fall Time (ns)	715(Typ)
Maximum Propagation Delay Time (ns)	20(Typ)
Input Logic Compatibility	CMOS
Operating Supply Voltage-Min (V)	9
Operating Supply Voltage-Max (V)	14
Maximum Supply Current (mA)	2(Typ)
Typical Input Low Threshold Voltage (V)	5.4
Peak Output Current (A)	1(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Special Features	Low Power Consumption
Maximum Turn-On Delay Time (ns)	1(Typ)
Maximum Turn-Off Delay Time (ns)	1(Typ)
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	HVSSOP EP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
