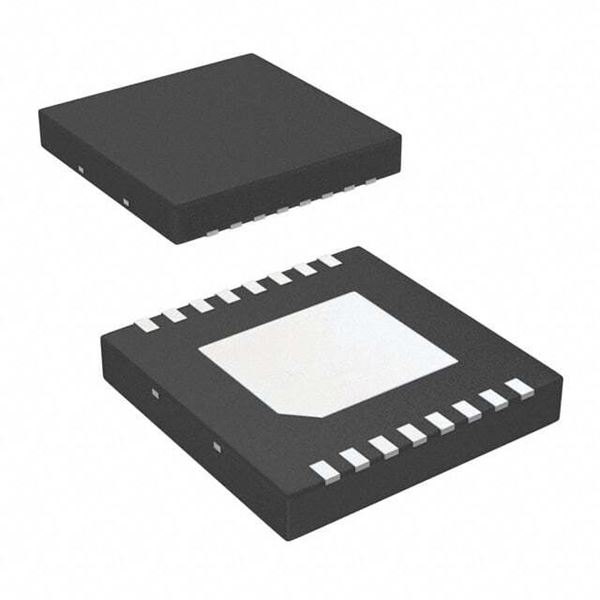

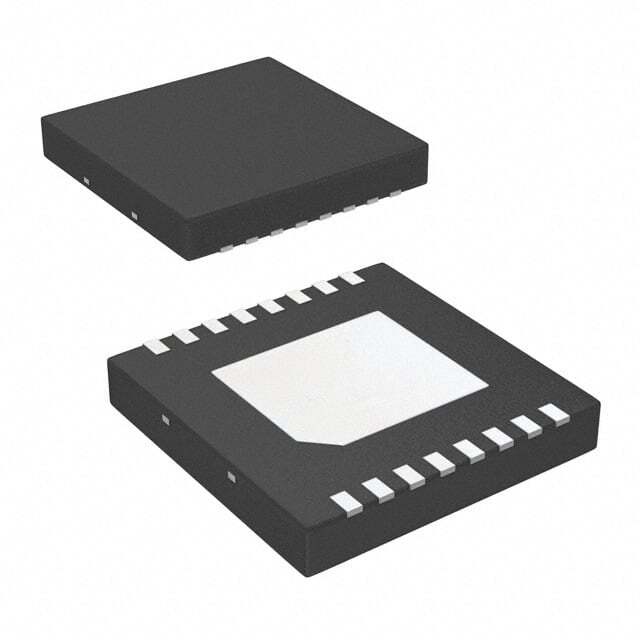

LM5070SD-50/NOPB

SKU: 122499

Manufacturer: Texas Instruments

Power Over Ethernet PD Controller 1.8V 75V 13W 16-Pin WSON EP

1690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	PD Controller
Standard Supported	IEEE802.3af
Minimum Input Voltage (V)	1.8
Maximum Input Voltage (V)	75
UVLO Turn-Off Threshold (V)	6.25
Maximum Current Limit (mA)	390(Typ)
Typical Inrush Current (mA)	400(Max)
Maximum Output Power (W)	13
Maximum Oscillating Frequency (Hz)	200000(Typ)
Maximum Duty Cycle (%)	50(Typ)
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	WSON EP
Pin Count	16
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	5
Package Width	5
PCB changed	16
