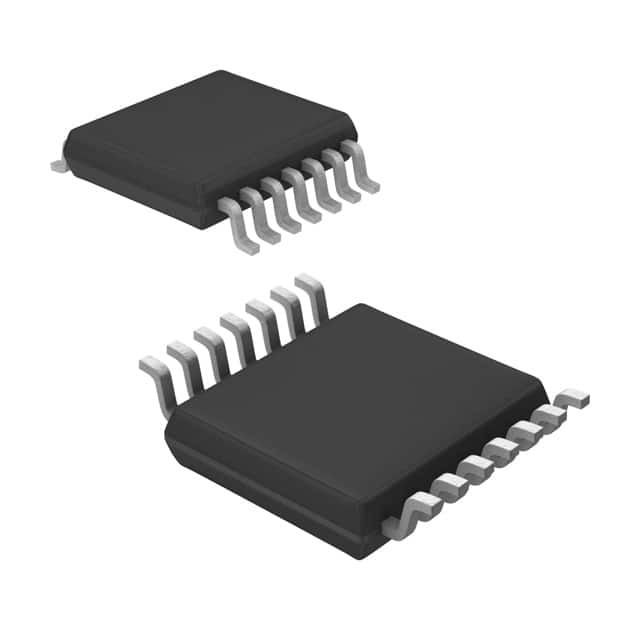

LM5032MTC

SKU: 19447

Manufacturer: Texas Instruments

Current Mode PWM Controller 2.5A 600kHz Automotive 16-Pin TSSOP Rail

100 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current Mode PWM Controller
Topology	Forward
Number of PWM Outputs	2
Switching Frequency (kHz)	600(Typ)
Maximum Duty Cycle (%)	76(Typ)
Rise Time (ns)	12
Output Current (mA)	2500
Fall Time (ns)	10
Operating Supply Voltage-Min (V)	13
Operating Supply Voltage-Max (V)	100
Maximum Supply Current (mA)	4.3(Typ)
Adjustable Output	Yes
On/Off Pin	Yes
Synchronous Pin	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Rail
Original Package	TSSOP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
