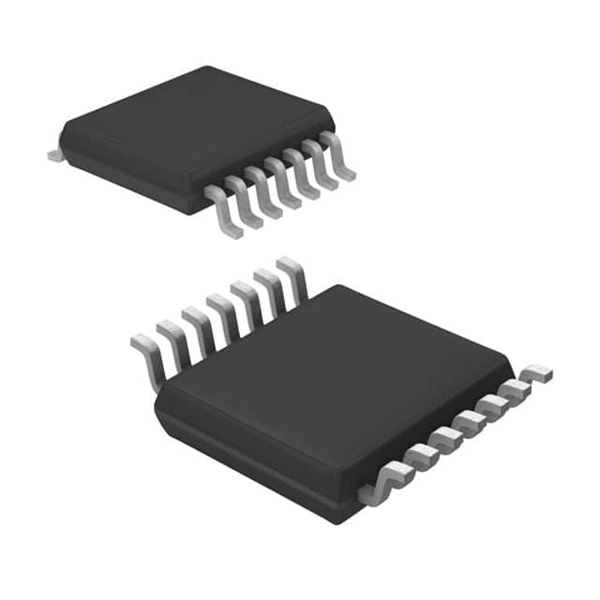

LM5026MT Texas Instruments

LM5026MT

SKU: 132723

Manufacturer: Texas Instruments

Current Mode PWM Controller 3A 590kHz 16-Pin TSSOP Tube

Request Free Samples

4300 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Current Mode PWM Controller
Control Method	Current Mode PWM Controller
Topology	Forward
Number of PWM Outputs	2
Switching Frequency (kHz)	590(Typ)
Maximum Duty Cycle (%)	80(Typ)
Rise Time (ns)	20
Output Current (mA)	3000
Fall Time (ns)	15
Maximum Supply Current (mA)	4.2
Adjustable Output	Yes
On/Off Pin	Yes
Synchronous Pin	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	16
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
