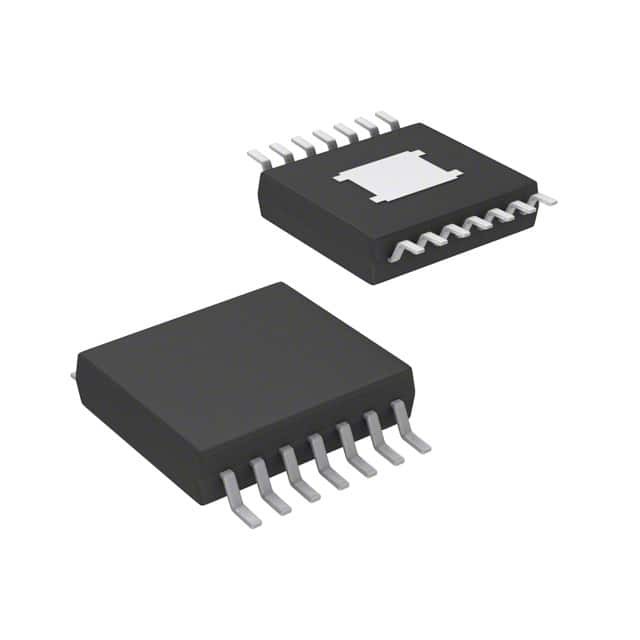

LM5010MHX

SKU: 90128

Manufacturer: Texas Instruments

Conv DC-DC 8V to 75V Step Down Single-Out 2.5V to 70V 1A 14-Pin HTSSOP EP T/R

5280 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	1000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	2.5 to 70
Maximum Output Current (A)	1
Minimum Input Voltage (V)	8
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	6.6 to 7.4
Typical Quiescent Current (uA)	650
Efficiency (%)	91
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	HTSSOP EP
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	14
