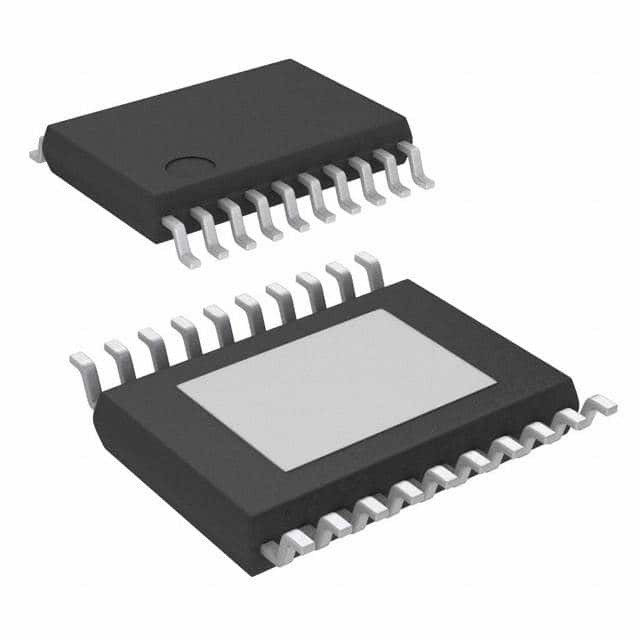

LM5005MH

SKU: 69014

Manufacturer: Texas Instruments

Conv DC-DC 7V to 75V Synchronous Step Down Single-Out 1.225V to 70V 2.5A 20-Pin HTSSOP EP Tube

1150 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	50 to 500
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.225 to 70
Maximum Output Current (A)	2.5
Minimum Input Voltage (V)	7
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	6.85 to 7.45
Typical Quiescent Current (uA)	3000
Efficiency (%)	90
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Pin Count	20
Standard Package Method	SOP
Original Package	HTSSOP EP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
