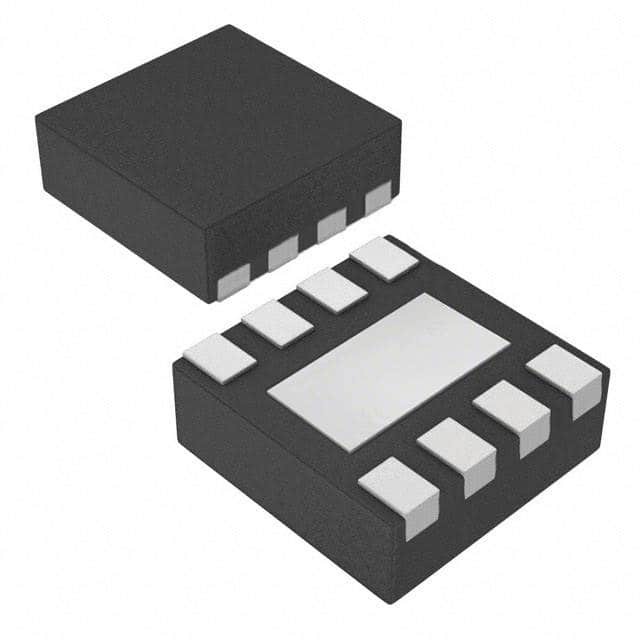

LM5001SD

SKU: 44763

Manufacturer: Texas Instruments

Conv DC-DC 3.1V to 75V Step Up Single-Out 1.26V to 75V 8-Pin WSON EP T/R

4460 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Up
Output Type	Adjustable
Switching Frequency (kHz)	1500(Max)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.26 to 75
Minimum Input Voltage (V)	3.1
Maximum Input Voltage (V)	75
Operating Supply Voltage (V)	3.1 to 75
Typical Switch Current (A)	1
Typical Quiescent Current (uA)	3100
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	WSON EP
Pin Count	8
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	4
Package Width	4
PCB changed	8
