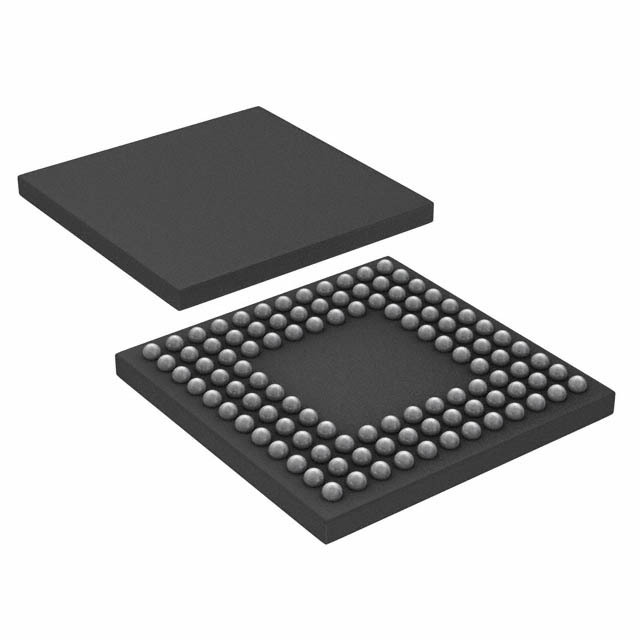

LM3S9D96-IBZ80-A2T

SKU: 30549

Manufacturer: Texas Instruments

MCU 32-bit ARM Cortex M3 RISC 512KB Flash 1.3V/3.3V 108-Pin NFBGA T/R

2660 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991.a.2
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	Stellaris
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	80
Maximum Clock Rate (MHz)	80
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	512KB
RAM Size	96KB
Programmability	Yes
Interface Type	CAN/Ethernet/I2C/I2S/SSI/UART/USB
Number of I/Os	65
No. of Timers	4
PWM	8
Number of ADCs	Dual
ADC Channels	16/16
ADC Resolution (bit)	12/12
USART	0
UART	3
USB	1
SPI	0
I2C	2
I2S	1
CAN	2
Ethernet	1
Watchdog	2
Analog Comparators	3
Special Features	CAN Controller
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	NFBGA
Pin Count	108
Standard Package Method	BGA
Terminal Form	Surface Mount
Package Height	1.02
Package Length	10
Package Width	10
PCB changed	108
