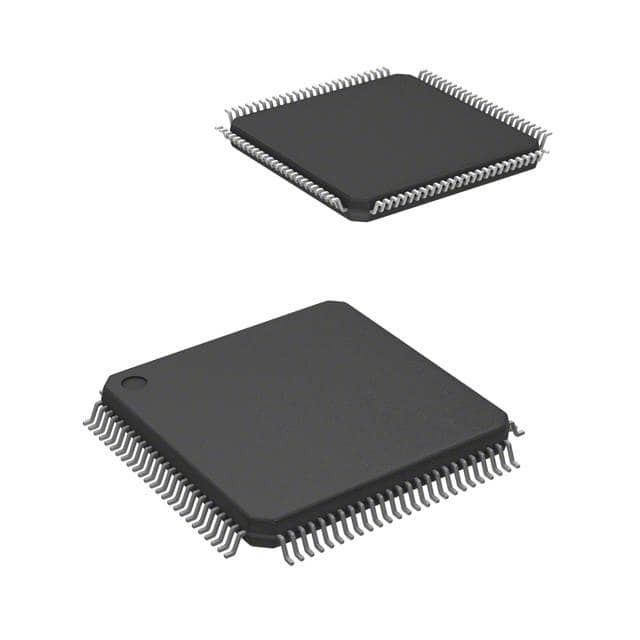

LM3S1162-IQC50-A2T

SKU: 40664

Manufacturer: Texas Instruments

MCU 32-bit ARM Cortex M3 RISC 64KB Flash 2.5V/3V/3.3V 100-Pin LQFP T/R

450 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	3A991A2
Part Status	Obsolete
HTS	8542.31.00.01
Automotive	No
PPAP	No
Family Name	Stellaris
Instruction Set Architecture	RISC
Device Core	ARM Cortex M3
Core Architecture	ARM
Maximum CPU Frequency (MHz)	50
Maximum Clock Rate (MHz)	50
Data Bus Width (bit)	32
Program Memory Type	FLASH
Program Memory Size	64KB
RAM Size	16KB
Programmability	Yes
Interface Type	I2C/SSI/UART
Number of I/Os	46
No. of Timers	6
PWM	3
Number of ADCs	Single
ADC Channels	2
ADC Resolution (bit)	10
USART	0
UART	3
USB	0
SPI	0
I2C	1
I2S	0
CAN	0
Ethernet	0
Watchdog	1
Analog Comparators	3
Operating Supply Voltage-Min (V)	3
Typical Operating Supply Voltage (V)	3.3
Operating Supply Voltage-Max (V)	3.6
Operating Temperature-Min	-40
Operating Temperature-Max	85
Supplier Temperature Grade	Industrial
Packing Method	Tape and Reel
Original Package	LQFP
Pin Count	100
Standard Package Method	QFP
Terminal Form	Surface Mount
Package Height	1.45(Max)
Package Length	14.2(Max)
Package Width	14.2(Max)
PCB changed	100
