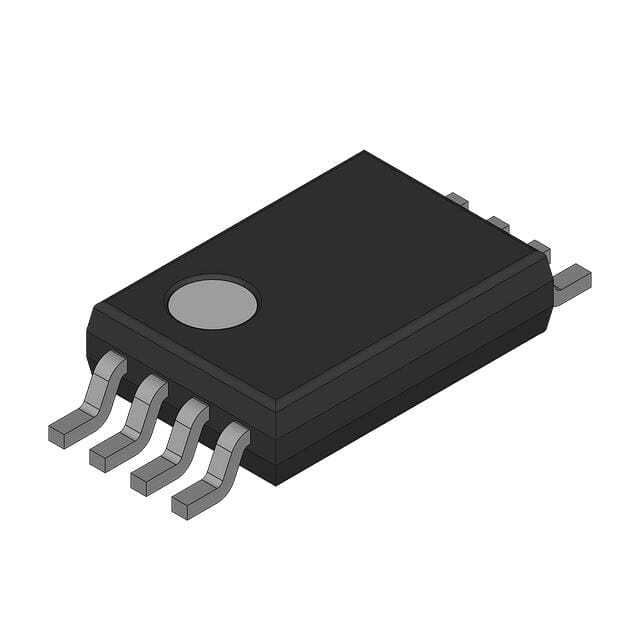

LM393PW

SKU: 26435

Manufacturer: Texas Instruments

Comparator Dual R-R O/P ±15V/30V Automotive 8-Pin TSSOP Tube

1700 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Manufacturer Type	Differential Comparator
Number of Channels per Chip	2
Rail to Rail	Rail to Rail Output
Typical Response Time (us)	1.3
Typical Response Time Range (us)	0.5 to 5
Maximum Propagation Delay Time (ns)	1300(Typ)
Output Type	Open Collector
Operating Supply Voltage-Max (V)	30
Maximum Input Offset Voltage (mV)	5@30V
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	28
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±1
Typical Dual Supply Voltage (V)	±12
Maximum Dual Supply Voltage (V)	±15
Typical Voltage Gain (dB)	106.02
Typical Voltage Gain Range (dB)	90 to 110
Maximum Input Bias Current (uA)	0.25@5V
Typical Output Current (mA)	20(Max)
Maximum Quiescent Current (mA)	1@5V
Maximum Test Temperature (°C)	70
Minimum Test Temperature (°C)	0
Power Supply Type	Dual
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Standard Package Method	SOP
Pin Count	8
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	3.1(Max)
Package Width	4.5(Max)
PCB changed	8
