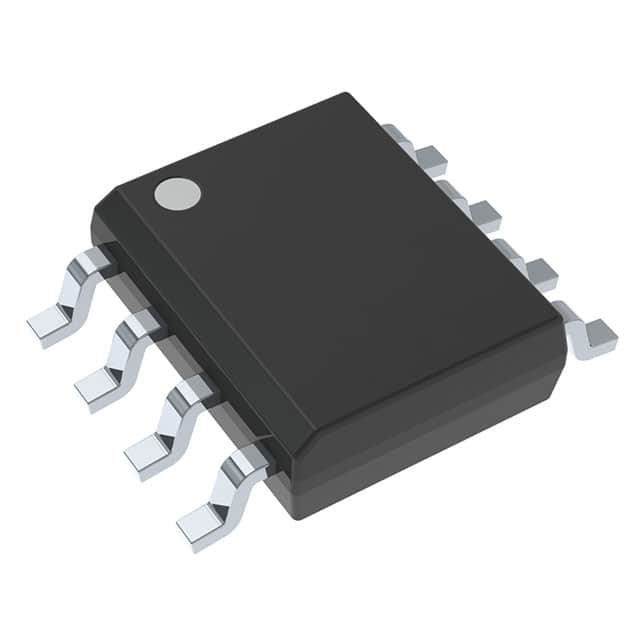

    LM393DR

    SKU: 83019
    Manufacturer: Texas Instruments
    Comparator Dual R-R O/P ±15V/30V Automotive 8-Pin SOIC T/R
    339030 parts IN STOCK
    Shipped from :
    Netherlands
    Expected Ships :
    Rohs State : Need to verify

    QUANTITY

    Increments of 0 pcs
    Products specifications
    EU RoHS Compliant
    ECCN (US) EAR99
    Part Status Active
    HTS 8542.39.00.01
    Automotive No
    PPAP No
    Manufacturer Type Differential Comparator
    Number of Channels per Chip 2
    Rail to Rail Rail to Rail Output
    Typical Response Time (us) 1.3
    Typical Response Time Range (us) 0.5 to 5
    Maximum Propagation Delay Time (ns) 1300(Typ)
    Output Type Open Collector
    Operating Supply Voltage-Max (V) ±15
    Maximum Input Offset Voltage (mV) 5@30V
    Minimum Single Supply Voltage (V) 2
    Typical Single Supply Voltage (V) 3
    Maximum Single Supply Voltage (V) 30
    Minimum Dual Supply Voltage (V) ±1
    Typical Dual Supply Voltage (V) ±3
    Maximum Dual Supply Voltage (V) ±15
    Typical Voltage Gain (dB) 106.02
    Typical Voltage Gain Range (dB) 90 to 110
    Maximum Input Bias Current (uA) 0.25@5V
    Typical Output Current (mA) 20(Max)
    Maximum Quiescent Current (mA) 1@5V
    Maximum Test Temperature (°C) 70
    Minimum Test Temperature (°C) 0
    Power Supply Type Single
    Operating Temperature-Min 0
    Operating Temperature-Max 70
    Packing Method Tape and Reel
    Standard Package Method SOP
    Pin Count 8
    Original Package SOIC
    Terminal Form Surface Mount
    Package Height 1.5(Max)
    Package Length 5(Max)
    Package Width 3.98(Max)
