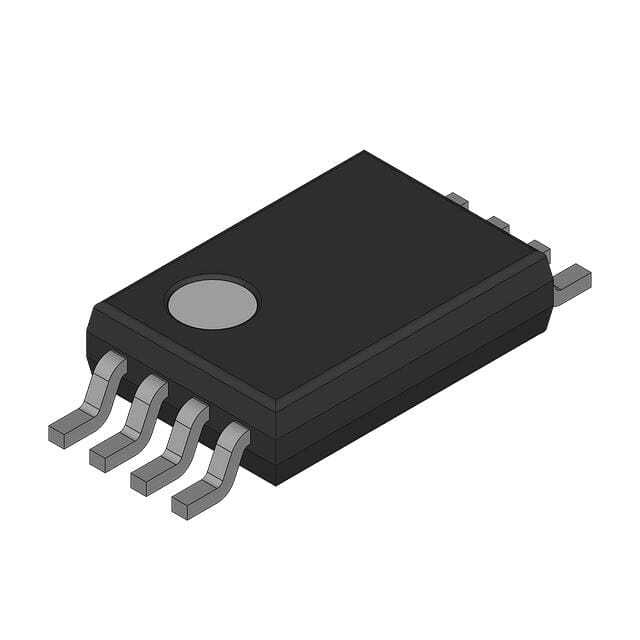

LM386MMX-1

SKU: 132671

Manufacturer: Texas Instruments

Audio Amp Speaker 1-CH Mono 0.325W Class-AB 8-Pin VSSOP T/R

8830 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Function	Speaker
Amplifier Type	Class-AB
THDN	0.2%@8Ohm@125mW
Output Signal Type	Single
Output Type	1-Channel Mono
Minimum Single Supply Voltage (V)	4
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	12
Maximum Input Bias Current (uA)	0.25(Typ)@6V
Maximum Quiescent Current (mA)	8@6V
Power Supply Type	Single
Typical Output Power x Channels @ Load (W)	0.325x1@8Ohm
Maximum Power Dissipation (mW)	595
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
