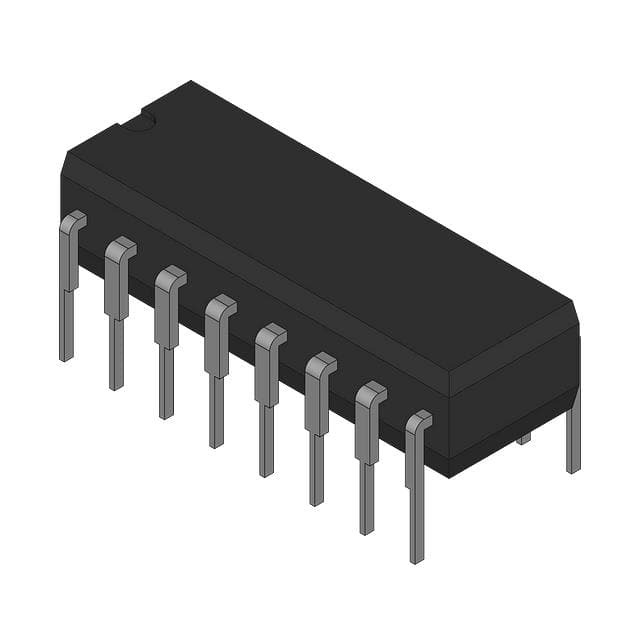

LM3524DN

SKU: 132658

Manufacturer: Texas Instruments

Voltage Mode PWM Controller 60V 200mA 350kHz 16-Pin PDIP

860 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Voltage Mode PWM Controller
Control Method	Voltage
Topology	Boost
Number of PWM Outputs	2
Oscillator Accuracy (kHz)	46
Switching Frequency (kHz)	350(Typ)
Maximum Duty Cycle (%)	49(Typ)
Output Current (mA)	200(Max)
Rise Time (ns)	200
Fall Time (ns)	100
Output Voltage (V)	60
Operating Supply Voltage (V)	8 to 40
Operating Supply Voltage-Min (V)	8
Operating Supply Voltage-Max (V)	40
Maximum Power Dissipation (mW)	1000
Adjustable Output	Yes
On/Off Pin	Yes
Synchronous Pin	Yes
Operating Temperature-Min	0
Operating Temperature-Max	80
Original Package	PDIP
Pin Count	16
Standard Package Method	DIP
Terminal Form	Through Hole
Package Height	3.3
Package Length	19.05
Package Width	6.35
PCB changed	16
