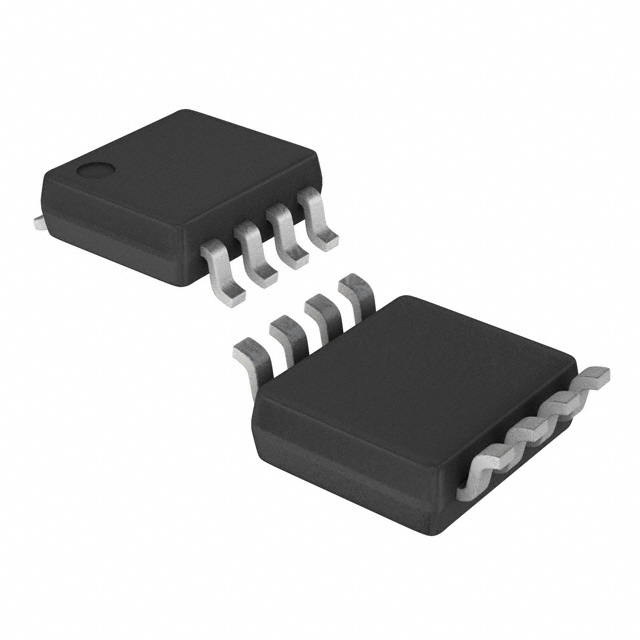

LM3485MM

SKU: 33518

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down 8-Pin VSSOP T/R

21200 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Output Voltage (V)	1.242 to 35
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	35
Operating Supply Voltage (V)	4.5 to 35
Typical Quiescent Current (mA)	0.25
Typical Gate Driver Pull Up Resistance (Ohm)	5.5
Typical Gate Driver Pull Down Resistance (Ohm)	8.5
Maximum Power Dissipation (mW)	417
Minimum Switching Frequency (kHz)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	VSSOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
