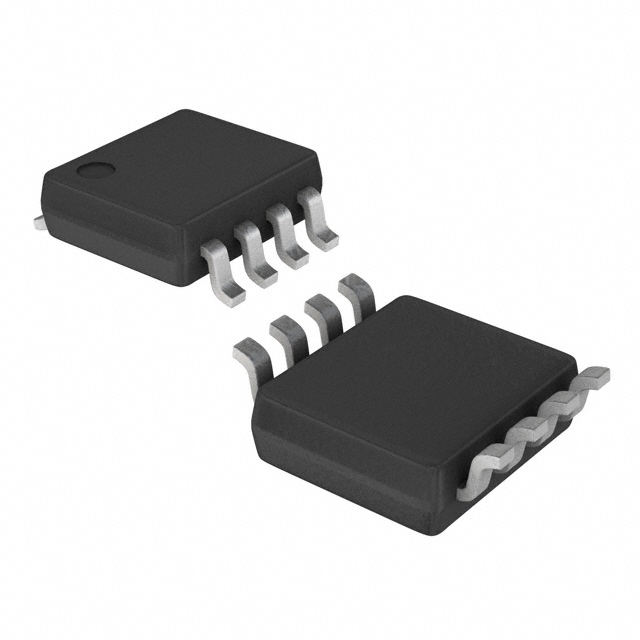

LM3478MM

SKU: 146763

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Up 1000kHz 8-Pin VSSOP T/R

91420 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Up
Output Voltage (V)	1.26 to 500
Maximum Output Current (A)	1
Maximum Switching Frequency (kHz)	1000
Minimum Input Voltage (V)	2.97
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	2.97 to 40
Maximum Supply Current (mA)	2.7(Typ)
Typical Quiescent Current (mA)	2.7
Minimum Switching Frequency (kHz)	100
Synchronous Rectifier	No
Synchronous Clock	Yes
Control Method	PWM
Programmability	Yes
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	8
Standard Package Method	SOP
Original Package	VSSOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
