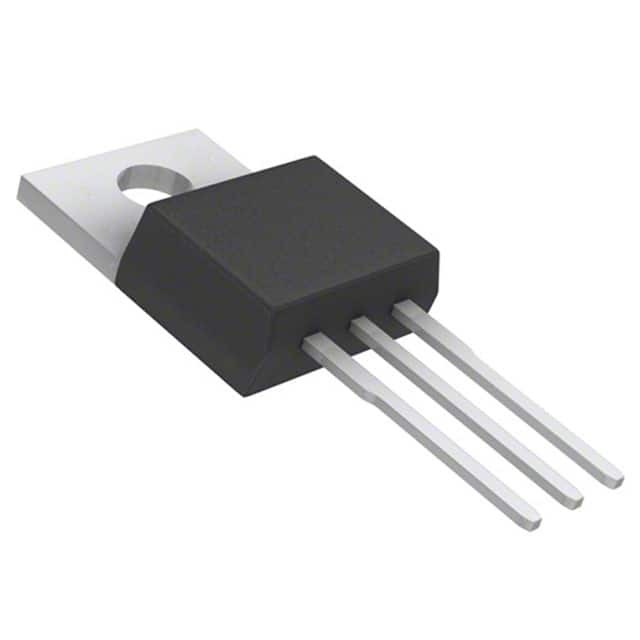

LM338T/NOPB

SKU: 33509

Manufacturer: Texas Instruments

Standard Regulator Pos 1.2V to 32V 5A 3-Pin(3+Tab) TO-220 Tube

23320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.2 to 32
Maximum Output Current (A)	5
Minimum Input Voltage (V)	4.2
Maximum Input Voltage (V)	40
Reference Voltage (V)	1.29
Line Regulation	0.03%/V
Load Regulation	0.5%
Maximum Power Dissipation (mW)	25000
Junction to Ambient	50°C/W(Typ)
Junction to Case	4°C/W
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220
Pin Count	3
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	8.89(Max)
Package Length	10.16
Package Width	4.7(Max)
PCB changed	3
Tab	Tab
