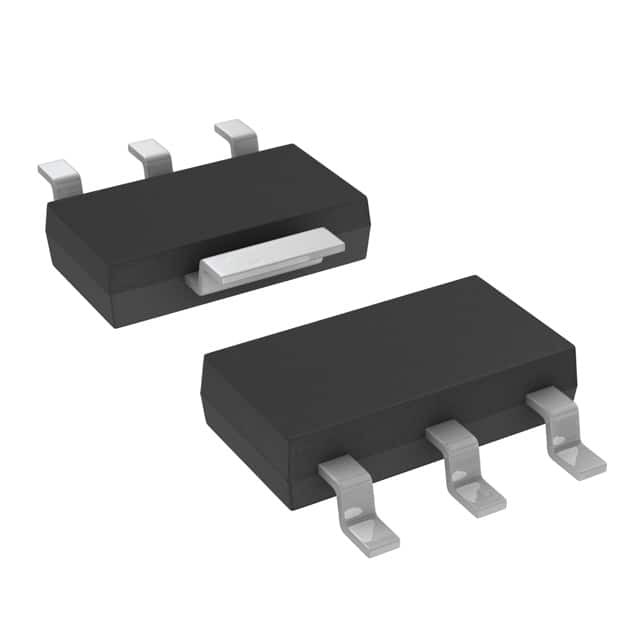

LM337IMPX/NOPB

SKU: 118420

Manufacturer: Texas Instruments

Standard Regulator Neg -1.2V to -37V 1A 4-Pin(3+Tab) SOT-223 T/R

4850 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Negative
Accuracy (%)	±4
Output Type	Adjustable
Output Voltage (V)	-1.2 to -37
Maximum Output Current (A)	1
Minimum Input Voltage (V)	-50
Maximum Input Voltage (V)	-4.2
Reference Voltage (V)	-1.287
Line Regulation	0.04%/V
Load Regulation	1%
Maximum Power Dissipation (mW)	2000
Junction to Ambient	58.3°C/W
Junction to Case	36.6°C/W
Special Features	Thermal Shutdown Protection
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.7(Max)
Package Length	6.7(Max)
Package Width	3.7(Max)
PCB changed	3
Tab	Tab
