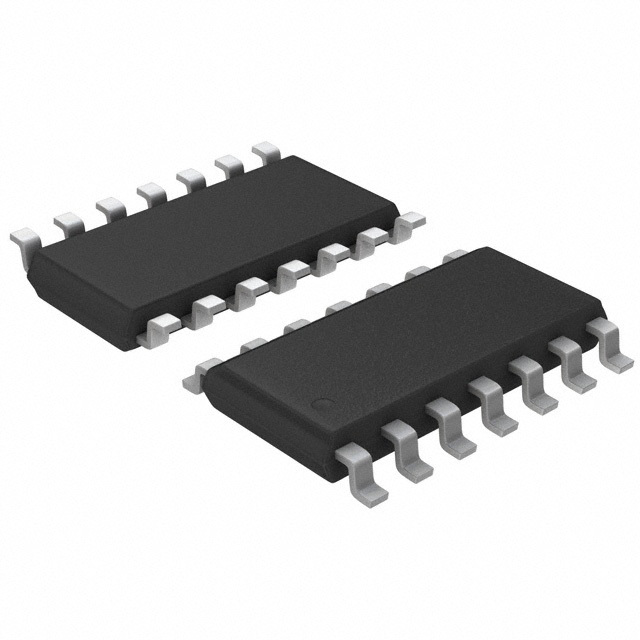

LM3302D

SKU: 19376

Manufacturer: Texas Instruments

Comparator Quad ±14V/28V 14-Pin SOIC Tube

2730 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
SVHC	Yes
Automotive	No
PPAP	No
Manufacturer Type	Differential Comparator
Number of Channels per Chip	4
Rail to Rail	No
Process Technology	Bipolar
Typical Response Time (us)	1.3
Typical Response Time Range (us)	0.5 to 5
Output Type	Open Collector
Operating Supply Voltage-Max (V)	±14
Maximum Input Offset Voltage (mV)	20@28V
Minimum Single Supply Voltage (V)	2
Typical Single Supply Voltage (V)	3
Maximum Single Supply Voltage (V)	28
Minimum Dual Supply Voltage (V)	±1
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±14
Typical Voltage Gain (dB)	89.54
Typical Voltage Gain Range (dB)	70 to 90
Maximum Input Bias Current (uA)	0.5@5V
Typical Output Current (mA)	20(Max)
Maximum Quiescent Current (mA)	0.8(Typ)@5V
Power Supply Type	Single
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Standard Package Method	SOP
Pin Count	14
Original Package	SOIC
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
