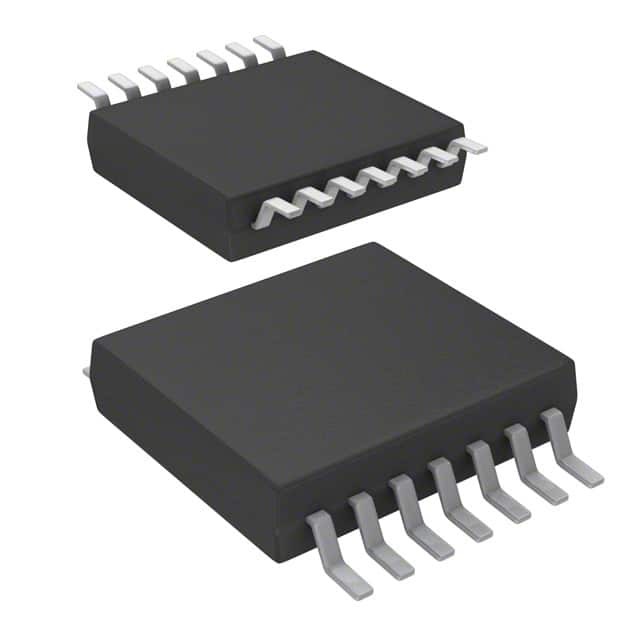

LM324APWR

SKU: 90045

Manufacturer: Texas Instruments

Op Amp Quad High Gain Amplifier ±16V/32V 14-Pin TSSOP T/R

3000 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
SVHC	Yes
Automotive	No
PPAP	No
Type	High Gain Amplifier
Manufacturer Type	High Gain Amplifier
Number of Channels per Chip	4
Maximum Input Offset Voltage (mV)	3@30V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	32
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±16
Typical Low Level Output Voltage (V)	0.005
Typical High Level Output Voltage (V)	28
Maximum Input Offset Current (uA)	0.03@5V
Typical Input Bias Current (uA)	0.015@5V
Maximum Input Bias Current (uA)	0.1@5V
Maximum Quiescent Current (mA)	1.2@5V@0C to 70C
Typical Output Current (mA)	30@15V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.5@±15V
Typical Input Noise Voltage Density (nV/rtHz)	35@±15V
Typical Voltage Gain (dB)	100
Minimum CMRR (dB)	65
Minimum CMRR Range (dB)	65 to 70
Typical Gain Bandwidth Product (MHz)	1.2
Shut Down Support	No
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	TSSOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	14
