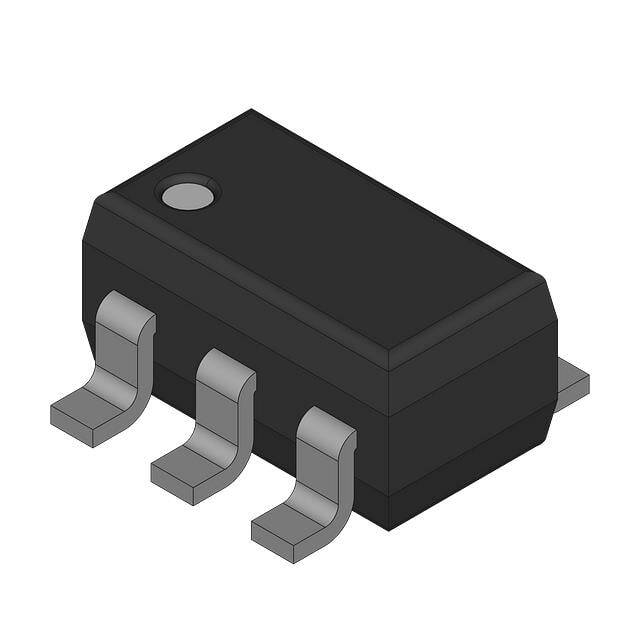

LM321MF/NOPB

SKU: 75909

Manufacturer: Texas Instruments

Op Amp Single Low Power Amplifier ±15V/30V 5-Pin SOT-23 T/R

52070 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.33.00.01
Automotive	No
PPAP	No
Type	Low Power Amplifier
Manufacturer Type	Low Power Amplifier
Number of Channels per Chip	1
Maximum Input Offset Voltage (mV)	7@5V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	30
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±15
Maximum Input Offset Current (uA)	0.05@5V
Typical Input Bias Current (uA)	-0.3 to 32
Maximum Input Bias Current (uA)	0.25@5V
Maximum Quiescent Current (mA)	1.15@5V
Typical Output Current (mA)	40@15V
Power Supply Type	Single
Typical Slew Rate (V/us)	0.4@15V
Typical Input Noise Voltage Density (nV/rtHz)	40@30V
Input Offset Voltage Drift (uV/°C)	9
Typical Voltage Gain (dB)	100
Typical Noninverting Input Current Noise Density (pA/rtHz)	0.1
Minimum PSRR (dB)	65
Minimum CMRR (dB)	65
Minimum CMRR Range (dB)	65 to 70
Typical Gain Bandwidth Product (MHz)	1
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Pin Count	5
Standard Package Method	SOT
Original Package	SOT-23
Terminal Form	Surface Mount
Package Height	1.1
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	5
