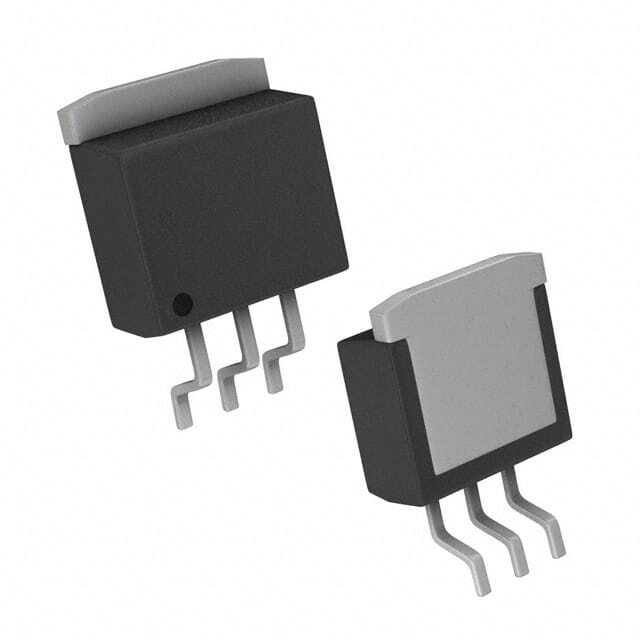

LM317SX Texas Instruments

LM317SX

SKU: 19374

Manufacturer: Texas Instruments

Standard Regulator Pos 1.2V to 37V 1.5A 4-Pin(3+Tab) DDPAK T/R

Request Free Samples

5270 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

QUANTITY

Increments of 0 pcs

Specifications
Contact Us

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Standard
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.2 to 37
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	4.2
Maximum Input Voltage (V)	40
Reference Voltage (V)	1.25(Typ)
Line Regulation	0.04%/V
Load Regulation	0.5%
Junction to Ambient	50°C/W(Typ)
Junction to Case	4°C/W(Typ)
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	DDPAK
Pin Count	4
Standard Package Method	TO-263
Terminal Form	Surface Mount
Package Height	4.83(Max)
Package Length	10.67(Max)
Package Width	9.65(Max)
PCB changed	3
Tab	Tab
