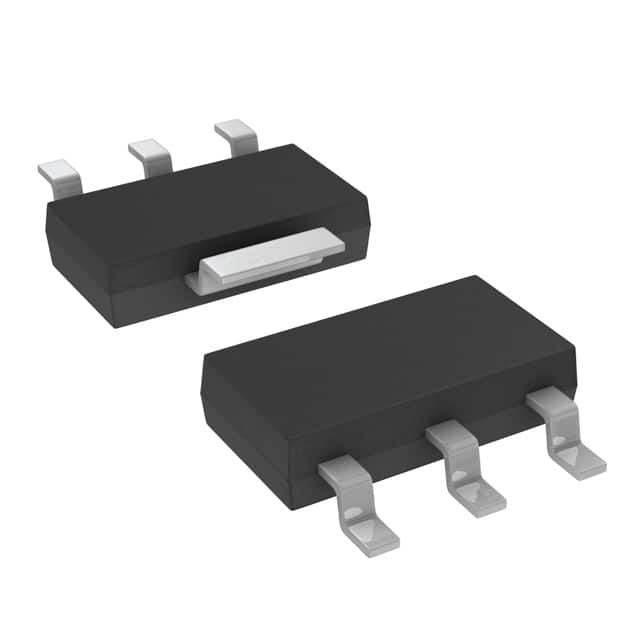

LM317MQDCYR

SKU: 19371

Manufacturer: Texas Instruments

Standard Regulator Pos 1.25V to 37V 0.25A Automotive 4-Pin(3+Tab) SOT-223 T/R

9670 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	Standard
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	1.25 to 37
Maximum Output Current (A)	0.25(Typ)
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	40
Maximum Dropout Voltage @ Current (V)	3@500mA
Reference Voltage (V)	1.3
Line Regulation	0.04%/V
Load Regulation	0.5%Vo
Junction to Ambient	60.2°C/W
Junction to Case	42°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.7(Max)
Package Length	6.7(Max)
Package Width	3.7(Max)
PCB changed	3
Tab	Tab
