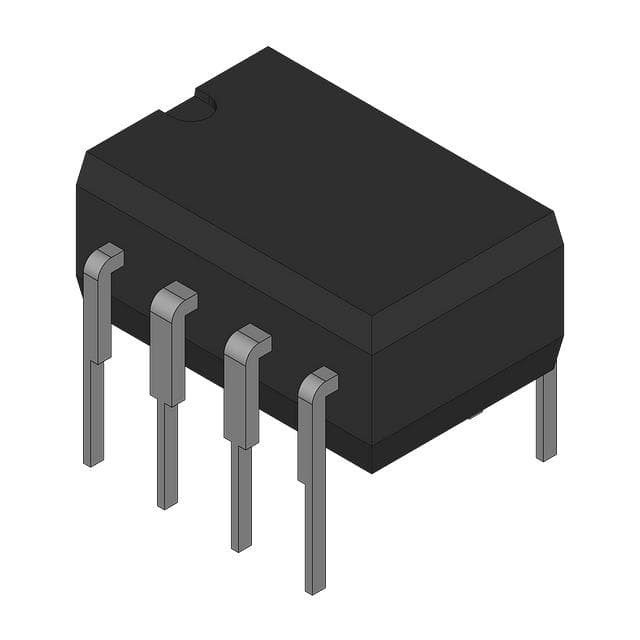

LM311N/NOPB

SKU: 118409

Manufacturer: Texas Instruments

Comparator Single ±18V/36V 8-Pin PDIP Tube

5570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Manufacturer Type	Voltage Comparator
Number of Channels per Chip	1
Rail to Rail	No
Process Technology	Bipolar
Typical Response Time (us)	0.2
Typical Response Time Range (us)	0.05 to 0.5
Maximum Propagation Delay Time (ns)	200(Typ)
Output Type	Open Drain/Collector
Operating Supply Voltage-Max (V)	±18
Maximum Input Offset Voltage (mV)	7.5@±15V
Minimum Single Supply Voltage (V)	5
Typical Single Supply Voltage (V)	9
Maximum Single Supply Voltage (V)	36
Minimum Dual Supply Voltage (V)	±2.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±18
Typical Voltage Gain (dB)	106.02
Typical Voltage Gain Range (dB)	90 to 110
Maximum Input Bias Current (uA)	0.25@±15V
Maximum Supply Current (mA)	7.5@15V/-5@-15V
Maximum Test Temperature (°C)	70
Minimum Test Temperature (°C)	0
Maximum Power Dissipation (mW)	500
Power Supply Type	Single
Operating Temperature-Min	0
Operating Temperature-Max	70
Packing Method	Tube
Standard Package Method	DIP
Pin Count	8
Original Package	PDIP
Terminal Form	Through Hole
Package Height	5.08(Max) - 0.51(Min)
Package Length	10.16(Max)
Package Width	6.6(Max)
PCB changed	8
