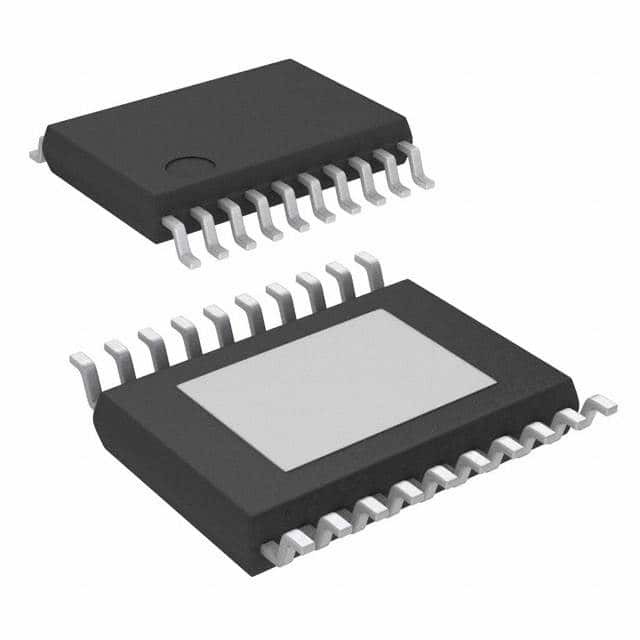

LM3100MH

SKU: 75900

Manufacturer: Texas Instruments

Conv DC-DC 4.5V to 36V Synchronous Step Down Single-Out 0.8V to 7V 1.5A 20-Pin HTSSOP EP Tube

540 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	1000
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	0.8 to 7
Maximum Output Current (A)	1.5
Minimum Input Voltage (V)	4.5
Maximum Input Voltage (V)	36
Operating Supply Voltage (V)	4.5 to 36
Typical Switch Current (A)	1.9
Typical Quiescent Current (uA)	1000
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tube
Original Package	HTSSOP EP
Pin Count	20
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	6.6(Max)
Package Width	4.5(Max)
PCB changed	20
