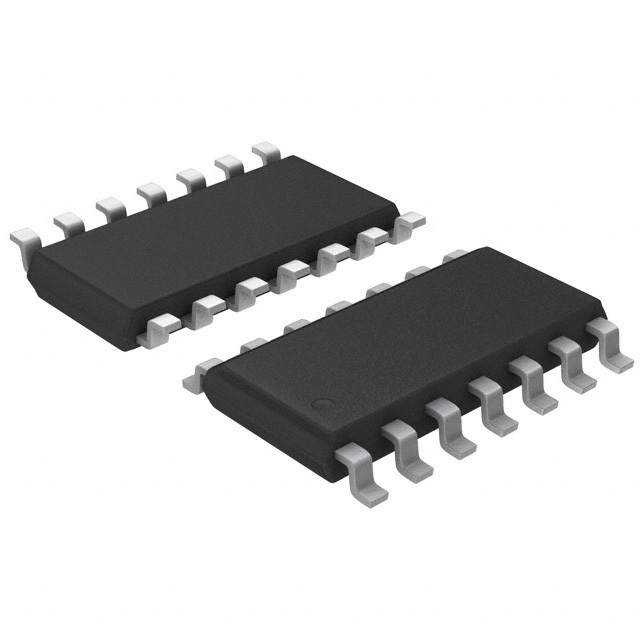

LM3046M

SKU: 104151

Manufacturer: Texas Instruments

Trans RF BJT NPN 15V 0.05A 750mW 14-Pin SOIC Tube

5690 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	NPN
Body Material	Si
Configuration	Quint
Number of Elements per pcs	5
Collector Base Voltage-Max (V)	20
Collector-Emitter Voltage-Max (V)	15
Collector-Emitter Voltage Range-Max (V)	<20
Maximum Collector-Emitter Saturation Voltage (V)	0.23(Typ)@1mA@10mA
Maximum Emitter Base Voltage (V)	5
Maximum DC Collector Current (A)	0.05
Maximum DC Collector Current Range (A)	0.001 to 0.06
Maximum Emitter Cut-Off Current (nA)	500
Maximum Collector Cut-Off Current (nA)	40
Minimum DC Current Gain	40@1mA@3V
Minimum DC Current Gain Range	30 to 50
Typical Input Capacitance (pF)	0.6
Typical Output Capacitance (pF)	0.58
Maximum Power Dissipation (mW)	750
Maximum Transition Frequency (MHz)	550(Typ)
Maximum Noise Figure (dB)	3.25(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tube
Original Package	SOIC
Pin Count	14
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.5(Max)
Package Length	8.75(Max)
Package Width	4(Max)
PCB changed	14
