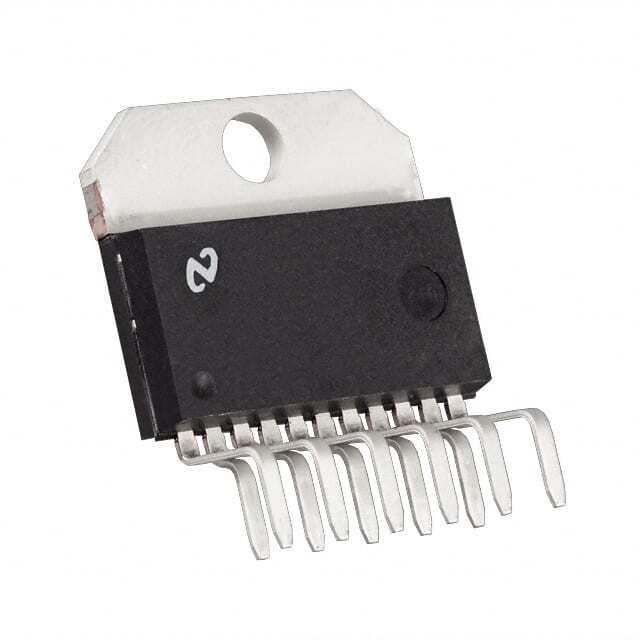

LM2984CT

SKU: 97149

Manufacturer: Texas Instruments

LDO Regulator Pos 5V 0.5A 11-Pin(11+Tab) TO-220 Rail

30 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.5
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	26
Maximum Dropout Voltage @ Current (V)	1@0.5A
Line Regulation	50mV
Load Regulation	50mV
Maximum Quiescent Current (mA)	50
Junction to Ambient	40°C/W
Junction to Case	3°C/W
Special Features	Safe Area Protection
Operating Temperature-Min	0
Operating Temperature-Max	125
Supplier Temperature Grade	Extended Commercial
Packing Method	Rail
Original Package	TO-220
Pin Count	11
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	10.69
Package Length	20.02
Package Width	4.5
PCB changed	11
