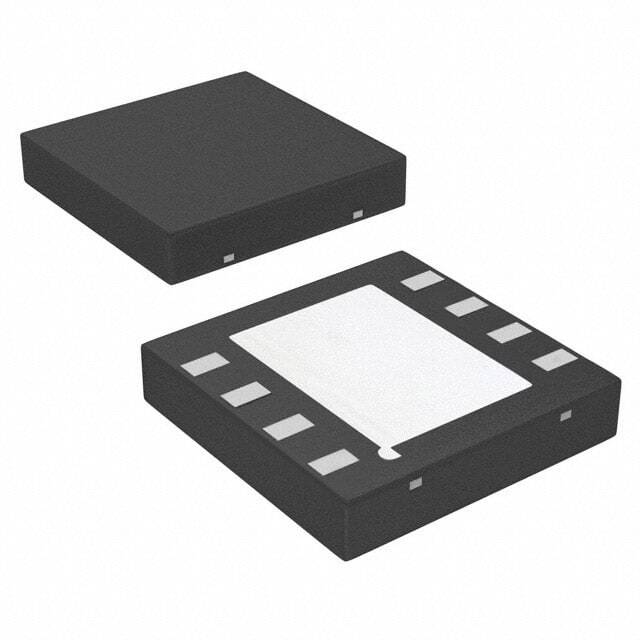

LM2941LD

SKU: 68935

Manufacturer: Texas Instruments

LDO Regulator Pos 5V to 20V 1A 8-Pin WSON EP T/R

650 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	5 to 20
Maximum Output Current (A)	1(Min)
Minimum Input Voltage (V)	6
Maximum Input Voltage (V)	26
Maximum Dropout Voltage @ Current (V)	0.8@1A
Reference Voltage (V)	1.313
Line Regulation	4mV/V(Typ)
Load Regulation	7mV/V(Typ)
Maximum Quiescent Current (mA)	15
Junction to Ambient	40.5°C/W
Junction to Case	26.2°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	WSON EP
Pin Count	8
Standard Package Method	SON
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	4
Package Width	4
PCB changed	8
