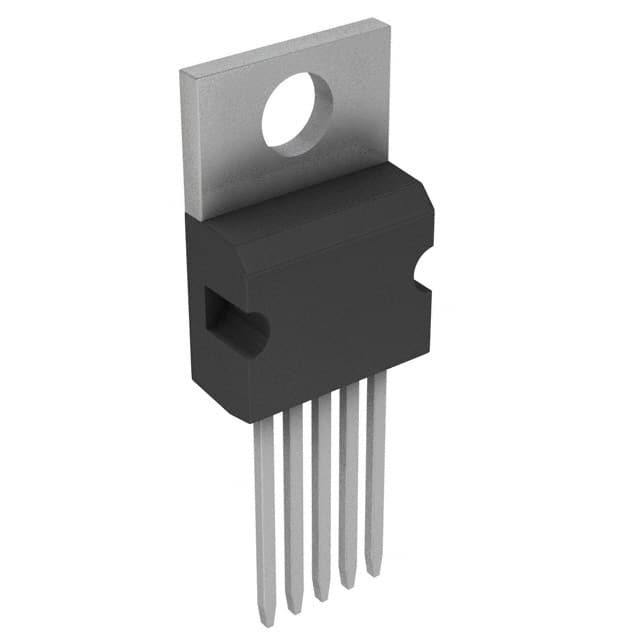

LM2941CT

SKU: 97148

Manufacturer: Texas Instruments

LDO Regulator Pos 5V to 20V 1A 5-Pin(5+Tab) TO-220 Tube

1040 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Output Type	Adjustable
Output Voltage (V)	5 to 20
Maximum Output Current (A)	1(Min)
Minimum Input Voltage (V)	-15
Maximum Input Voltage (V)	26
Maximum Dropout Voltage @ Current (V)	0.8@1A
Reference Voltage (V)	1.313
Line Regulation	4mV/V(Typ)
Load Regulation	7mV/V(Typ)
Maximum Quiescent Current (mA)	15
Special Features	Current Limit
Operating Temperature-Min	0
Operating Temperature-Max	125
Packing Method	Tube
Original Package	TO-220
Pin Count	5
Standard Package Method	TO-220
Terminal Form	Through Hole
Package Height	9.25(Max)
Package Length	10.67(Max)
Package Width	4.83(Max)
PCB changed	5
