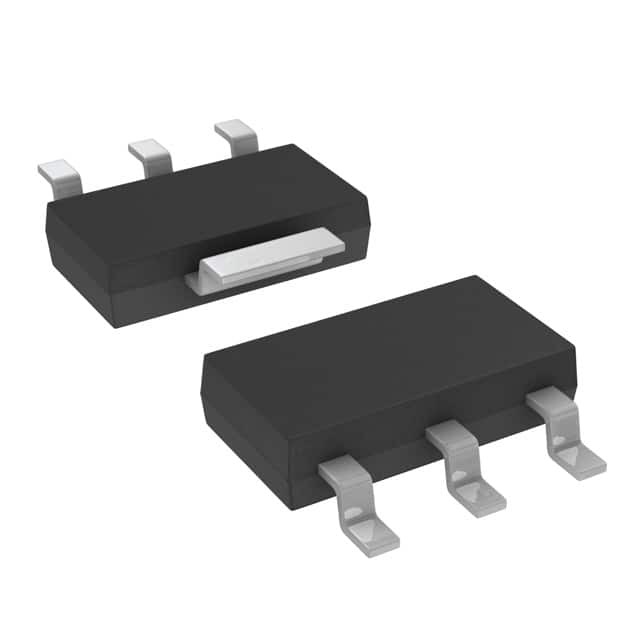

LM2940IMP-5.0

SKU: 97144

Manufacturer: Texas Instruments

LDO Regulator Pos 5V 1A Automotive 4-Pin(3+Tab) SOT-223 T/R

10880 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±2
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	1(Min)
Minimum Input Voltage (V)	6.25
Maximum Input Voltage (V)	26
Maximum Dropout Voltage @ Current (V)	0.15@100mA
Line Regulation	50mV
Load Regulation	50mV
Maximum Quiescent Current (mA)	15
Junction to Ambient	59.3°C/W
Junction to Case	38.9°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	85
Packing Method	Tape and Reel
Original Package	SOT-223
Pin Count	4
Standard Package Method	SOT
Terminal Form	Surface Mount
Package Height	1.7(Max)
Package Length	6.7(Max)
Package Width	3.7(Max)
PCB changed	3
Tab	Tab
