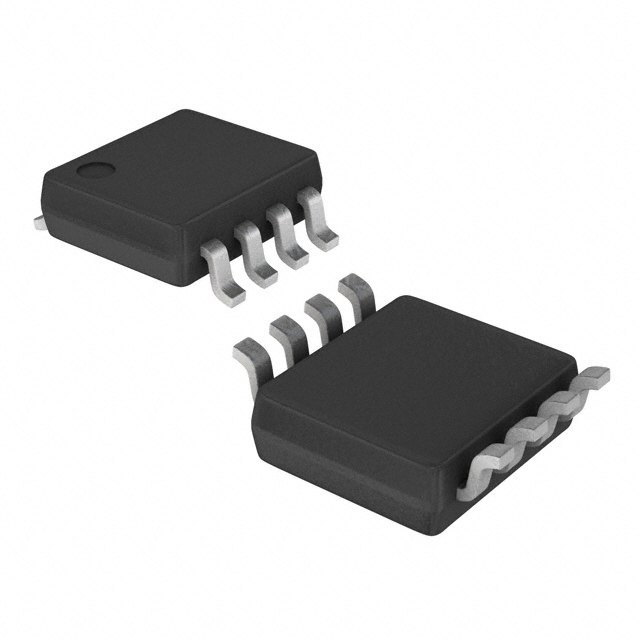

LM2936QMMX-5.0/NOPB

SKU: 54889

Manufacturer: Texas Instruments

LDO Regulator Pos 5V 0.05A Automotive 8-Pin VSSOP T/R

2680 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	Yes
PPAP	Yes
Type	LDO
Number of Outputs	1
Polarity	Positive
Accuracy (%)	±3
Output Type	Fixed
Output Voltage (V)	5
Maximum Output Current (A)	0.05
Minimum Input Voltage (V)	5.5
Maximum Input Voltage (V)	40
Maximum Dropout Voltage @ Current (V)	0.1@100uA
Line Regulation	30mV
Load Regulation	30mV
Maximum Quiescent Current (mA)	0.02
Junction to Ambient	173.4°C/W
Junction to Case	65.9°C/W
Special Features	Current Limit
Operating Temperature-Min	-40
Operating Temperature-Max	125
Supplier Temperature Grade	Automotive
Packing Method	Tape and Reel
Original Package	VSSOP
Pin Count	8
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	0.95(Max)
Package Length	3.1(Max)
Package Width	3.1(Max)
PCB changed	8
