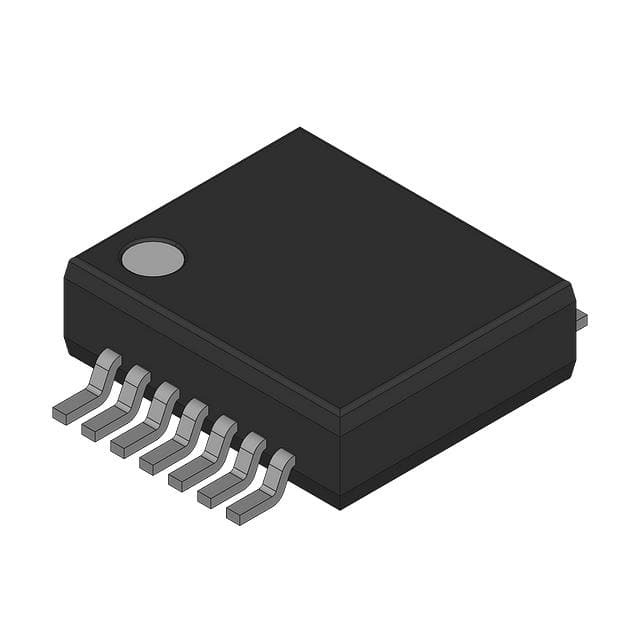

LM2902DBR

SKU: 61900

Manufacturer: Texas Instruments

Op Amp Quad High Gain Amplifier ±13V/26V 14-Pin SSOP T/R

1290 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Unconfirmed
SVHC	Yes
Automotive	No
PPAP	No
Type	High Gain Amplifier
Manufacturer Type	High Gain Amplifier
Number of Channels per Chip	4
Maximum Input Offset Voltage (mV)	7@26V
Minimum Single Supply Voltage (V)	3
Typical Single Supply Voltage (V)	5
Maximum Single Supply Voltage (V)	26
Minimum Dual Supply Voltage (V)	±1.5
Typical Dual Supply Voltage (V)	±3
Maximum Dual Supply Voltage (V)	±13
Maximum Input Offset Current (uA)	0.05@5V
Maximum Input Bias Current (uA)	0.25@5V
Maximum Quiescent Current (mA)	0.7(Typ)@5V
Typical Output Current (mA)	30@15V
Power Supply Type	Dual
Typical Slew Rate (V/us)	0.5
Typical Input Noise Voltage Density (nV/rtHz)	35
Typical Voltage Gain (dB)	100
Minimum CMRR (dB)	50
Minimum CMRR Range (dB)	50 to 60
Typical Gain Bandwidth Product (MHz)	1.2
Shut Down Support	No
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SOP
Original Package	SSOP
Terminal Form	Surface Mount
Package Height	2(Max) - 0.05(Min)
Package Length	6.5(Max)
Package Width	5.6(Max)
PCB changed	14
