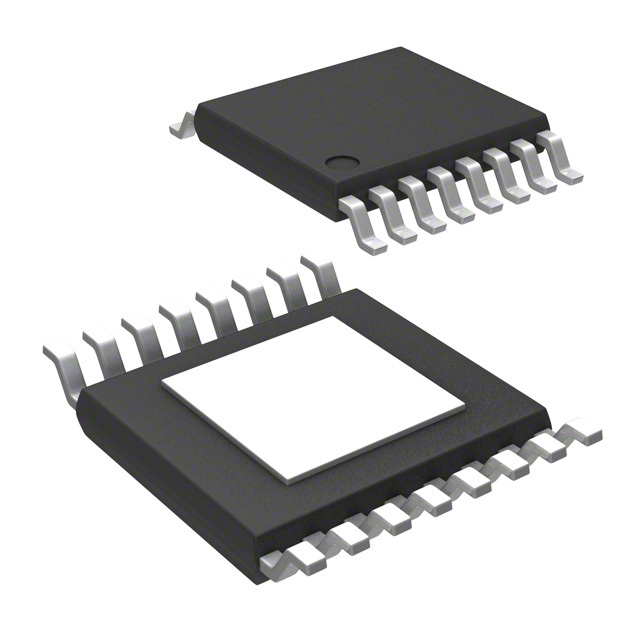

LM27402MHX/NOPB

SKU: 12222

Manufacturer: Texas Instruments

DC/DC Cntrlr Single-OUT Step Down 1200kHz 16-Pin HTSSOP EP T/R

3430 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Number of Outputs	1
Topology	Step Down
Maximum Switching Frequency (kHz)	1200
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	20
Operating Supply Voltage (V)	3 to 20
Typical Quiescent Current (mA)	4.5
Typical Gate Driver Pull Up Resistance (Ohm)	1.7/1.7
Typical Gate Driver Pull Down Resistance (Ohm)	1/1.2
Minimum Switching Frequency (kHz)	200
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	HTSSOP EP
Pin Count	16
Standard Package Method	SOP
Terminal Form	Surface Mount
Package Height	1.05(Max)
Package Length	5.1(Max)
Package Width	4.5(Max)
PCB changed	16
