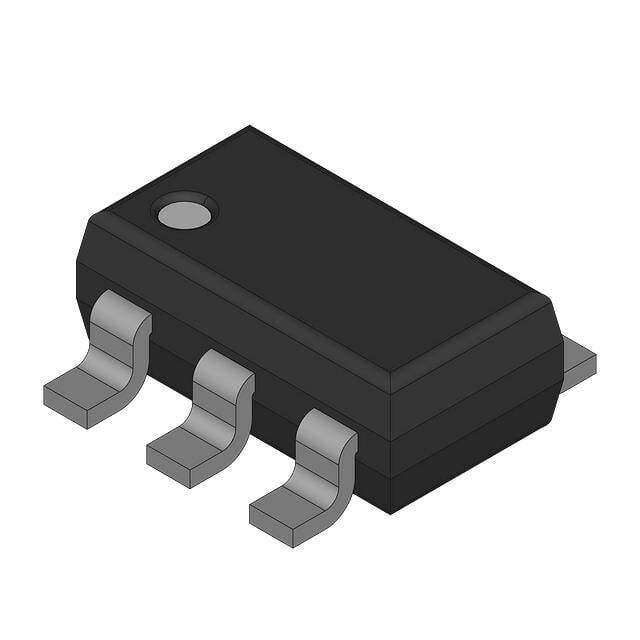

LM2736XMK

SKU: 61890

Manufacturer: Texas Instruments

Conv DC-DC 3V to 18V Step Down Single-Out 1.25V to 16V 0.75A 6-Pin TSOT-23 T/R

3320 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	NRND
HTS	8542.39.00.01
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Type	Step Down
Output Type	Adjustable
Switching Frequency (kHz)	1600(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.25 to 16
Maximum Output Current (A)	0.75
Minimum Input Voltage (V)	3
Maximum Input Voltage (V)	18
Typical Quiescent Current (uA)	1500
Line Regulation	0.01%/V(Typ)
Efficiency (%)	90
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	TSOT-23
Pin Count	6
Standard Package Method	SOT-23
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	3.05(Max)
Package Width	1.75(Max)
PCB changed	6
