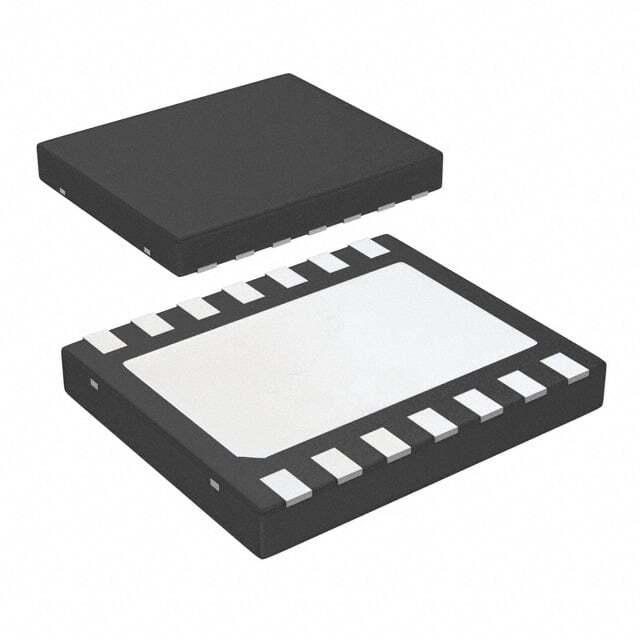

LM2677SD-ADJ/NOPB

SKU: 23426

Manufacturer: Texas Instruments

Conv DC-DC 8V to 40V Synchronous Step Down Single-Out 1.2V to 37V 5A 14-Pin VSON EP T/R

2570 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Compliant
ECCN (US)	EAR99
Part Status	Active
HTS	8542.39.00.01
Automotive	No
PPAP	No
Type	Synchronous Step Down
Output Type	Adjustable
Switching Frequency (kHz)	260(Typ)
Switching Regulator	Yes
Number of Outputs	1
Output Voltage (V)	1.2 to 37
Maximum Output Current (A)	5
Minimum Input Voltage (V)	8
Maximum Input Voltage (V)	40
Operating Supply Voltage (V)	8 to 40
Typical Quiescent Current (uA)	4200
Efficiency (%)	84(Typ)
Operating Temperature-Min	-40
Operating Temperature-Max	125
Packing Method	Tape and Reel
Pin Count	14
Standard Package Method	SON
Original Package	VSON EP
Terminal Form	Surface Mount
Package Height	1(Max)
Package Length	6
Package Width	5
PCB changed	14
