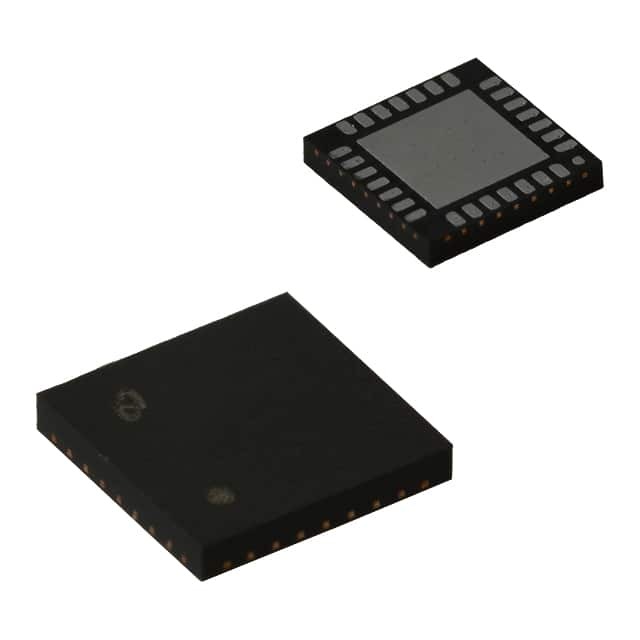

LM2647LQ

SKU: 153860

Manufacturer: Texas Instruments

DC/DC Cntrlr Dual-OUT Step Down 500kHz 28-Pin WQFN EP T/R

3780 parts IN STOCK

Shipped from :

Netherlands

Expected Ships :

Rohs State : Need to verify

Increments of 0 pcs

Products specifications

EU RoHS	Not Compliant
ECCN (US)	EAR99
Part Status	Obsolete
SVHC	Yes
SVHC Exceeds Threshold	Yes
Automotive	No
PPAP	No
Number of Outputs	2
Topology	Step Down
Output Voltage (V)	0.6 to 5
Maximum Switching Frequency (kHz)	500
Minimum Input Voltage (V)	5.5
Maximum Input Voltage (V)	28
Operating Supply Voltage (V)	5.5 to 28
Maximum Power Dissipation (mW)	1000
Minimum Switching Frequency (kHz)	200
Operating Temperature-Min	-5
Operating Temperature-Max	125
Packing Method	Tape and Reel
Original Package	WQFN EP
Pin Count	28
Standard Package Method	QFN
Terminal Form	Surface Mount
Package Height	0.8(Max)
Package Length	5
Package Width	5
PCB changed	28
